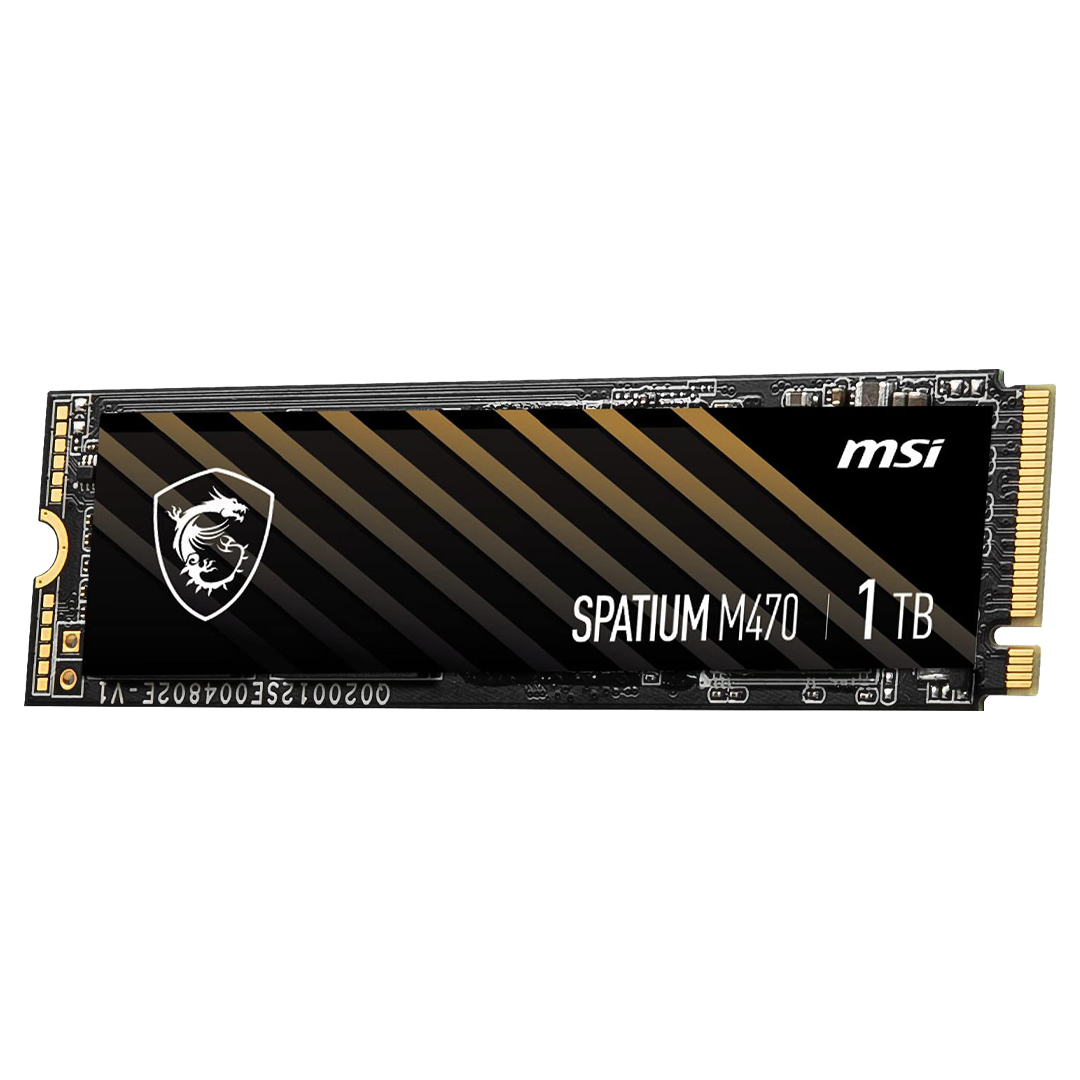

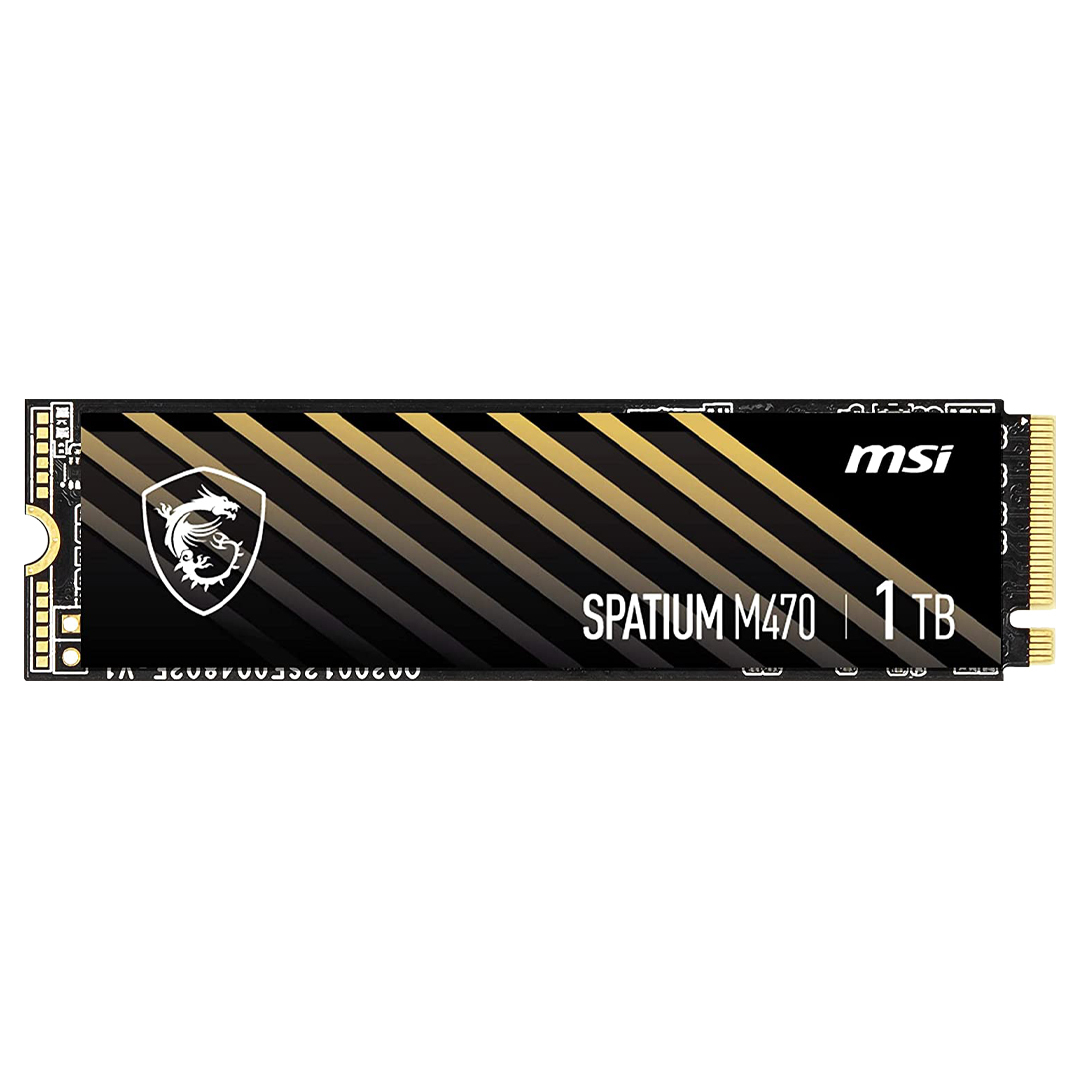

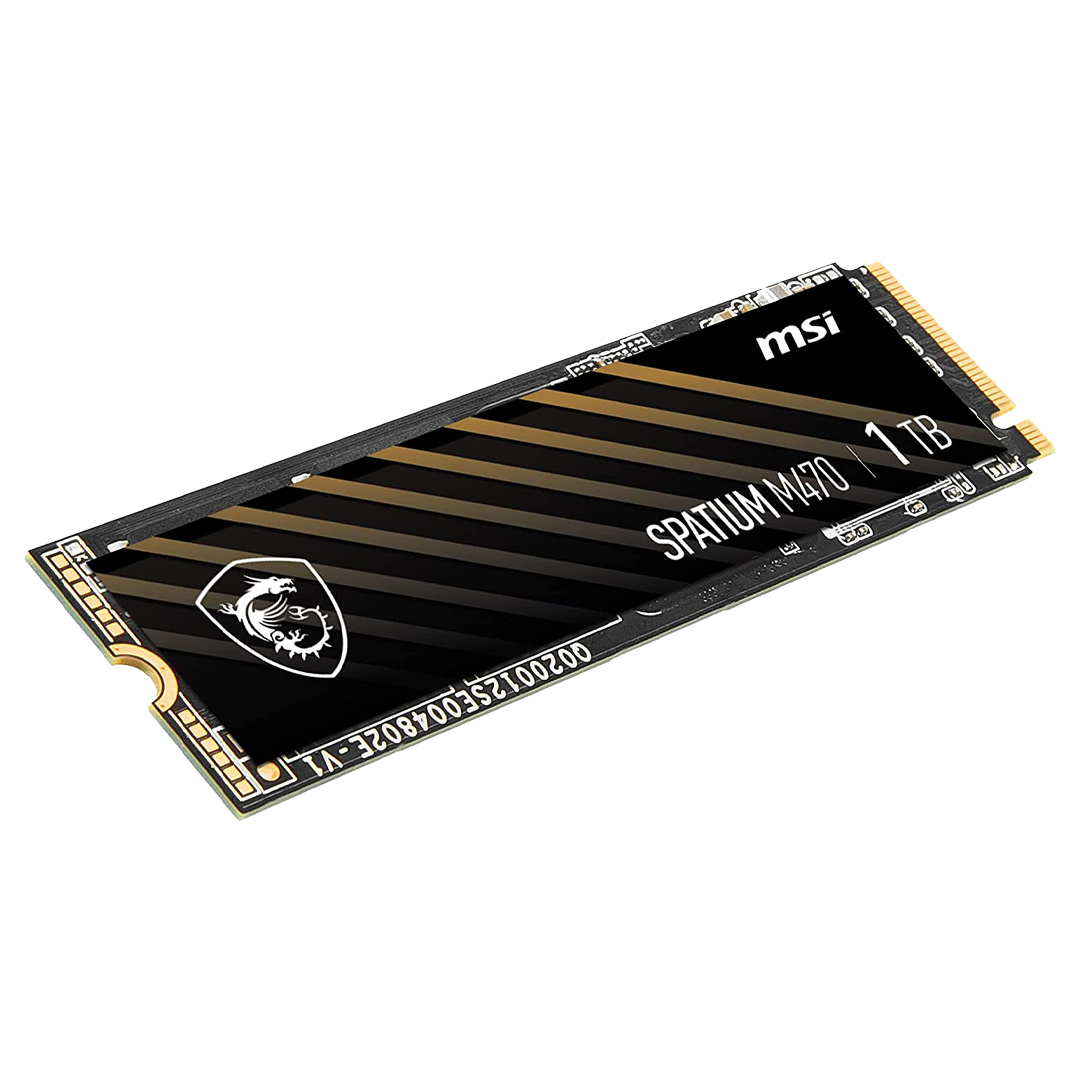

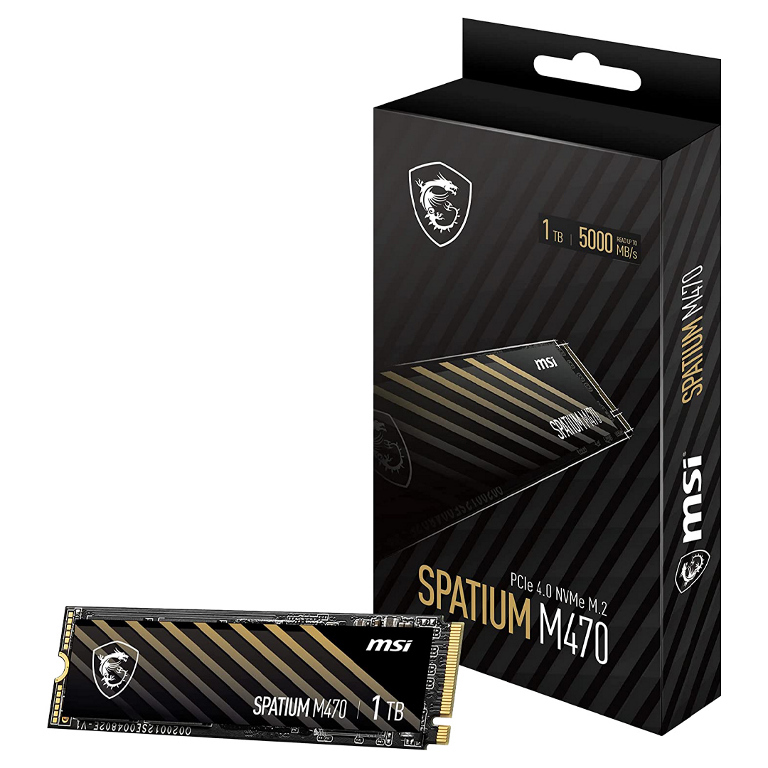

MSI 1TB M470 PCIe 4.0 NVMe M.2 SSD, 5000/4400 MB/s Read/Write, PCI-E NVMe 1.3, 1600 TBW, 5 Year Warranty

SPATIUM M470 PCIe 4.0 NVMe M.2

PCIe Gen4x4 interface and complies with the NVMe 1.3 standard

Sequential Read speeds up to 5000MB/s and Write speeds up to 4400MB/s

Up to 3300 TBW

Built-in data security and error-correction capabilities

1TB to 2TB capacities in M.2 2280 form factor

Suitable for both desktop and notebook

5-Year Warranty

MODEL NAME SPATIUM M470 PCIe 4.0 NVMe M.2

CAPACITY 1TB

CONTROLLER PHISON E16

FLASH MEMORY 3D NAND

DRAM CACHE 1GB DDR4

FORM FACTOR M.2 2280

INTERFACE PCIe Gen4x4, NVMe 1.3

COMPATIBILITY PCIe Gen4 / Gen3 / Gen2 / Gen1

DIMENSIONS 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

SEQUENTIAL READ UP TO (MB/S) 5000

SEQUENTIAL WRITE UP TO (MB/S) 4400

RANDOM READ 4KB UP TO (IOPS) 600,000

RANDOM WRITE 4KB UP TO (IOPS) 600,000

MAXIMUM OPERATING POWER (W) 6.3

IDLE POWER PS3 (MW) 20

LOW POWER L1.2 (MW) 2

OPERATING TEMPERATURES 0°C “ 70°C

STORAGE TEMPERATURES -40°C “ 85°C

TERABYTES WRITTEN (TBW) 1600

MEAN TIME BETWEEN FAILURE (MTBF) Up to 1,700,000 Hours

LIMITED WARRANTY 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

TCG OPAL2.0/Pyrite (Encryption, Data Security)
