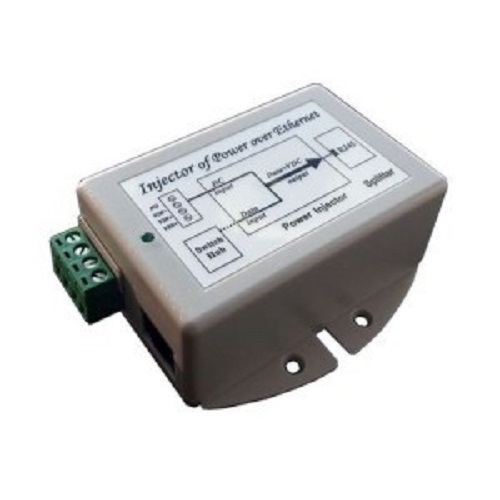

Tycon Power TP-DCDC-1248G 1Gbps 9-36VDC IN 48V OUT 24W DC to DC PoE Description: The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W. SKU:TP-DCDC-1248G SPEC SHEET:Click Here USER GUIDE:Click Here DIMENSIONAL DRAWING:Click Here Features • Input Voltage 12VDC or 24VDC (Range 9-36VDC) • Passive PoE Output, 48VDC • Dual Inputs for Connecting 2 Power Sources • Integrated 10/100/1000MB PoE Inserter • High Power up to 24W • Low Self Consumption Power • Short Circuit, Over Current and Reverse/Over Voltage Protect • High Temperature Operation • Compact Size – Maximize Available Space • I.T.E. Power Supply, UL Listed Applications • 12V / 24V Battery Systems, Vehicle Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems
