Description

The EP-S16 features 16 RJ45 Ethernet ports and two SFP+ ports.


The Ubiquiti Edgepoint EP-S16 provides advanced features, including:

MSTP/RSTP/STP

VLAN, Private VLAN, Voice VLAN

Link Aggregation

DHCP Snooping, IGMP Snooping

TACACS+, RADIUS, 802.1X, MAC Filtering, ACL

DiffServ, CoS

Static Routing, Policy-Based Routing

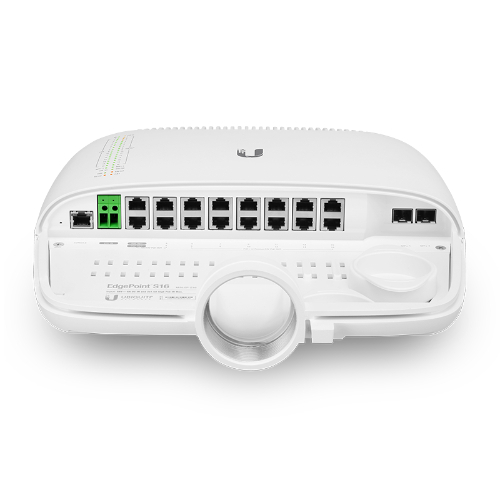

Ubiquiti Edgepoint EP-S16 Bottom Panel

Power Options

54VDC, 6A Terminal Block

Dual PoE Input

1x Console Port

Data Ports

16x RJ45 Ports

2x SFP+ Ports


Sixteen RJ45 ports support PoE:

PoE Input or Output

2x Ports with Two Options:54V, 1.5A Passive PoE Input or 54 or 24V, 1.4A Passive PoE Output*

PoE Output

2x 54 or 24V, 1.4A Passive PoE Output Ports*

12x PoE+ or 24V, 0.7A Passive PoE Output Ports*


Cabling Protection

FiberProtect Strain Relief for Fiber Optic Strands

Cable Sleeve and Option for Conduit (Not Included)

Cable Tie Slots (Cable Ties Not Included)

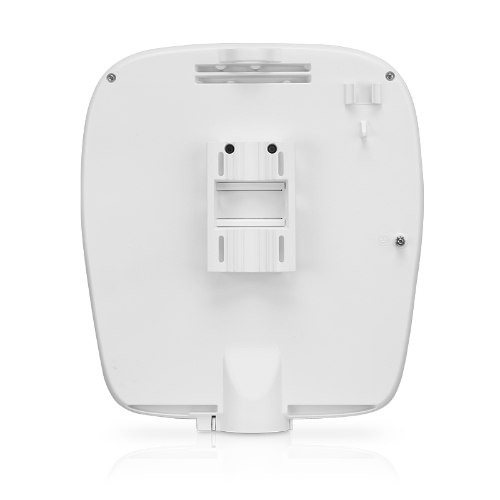

Back Panel

Lanyard Loop for Ease of Installation

Slot for PicoStationM2HP (Not Included) to Allow for Wireless


Management

Pole-Mount Bracket (Wall-Mount Bracket Also Included)

Ground Bonding Point

Specifications
SKU NHU-EP-S16
Barcode # 810354024276
Brand Ubiquiti
Shipping weight 4.3900kg
Assembled length 0.466m
Assembled height 0.129m
Assembled width 0.373m

Ubiquiti EdgePoint 16 Port PoE Outdoor WISP Switch - 4x 54v/24v PoE Ports, 12x 802.3af 48v PoE Ports - ESD Power Protection

$1,164.83
RRP $1,334.84 save 13%

or 4 payments of $291.21 with Learn more

NHU-EP-R8
In Stock

Product Information

SKU:

NHU-EP-S16

Brand:

Ubiquiti

Barcode #:

810354024276

Shipping Weigth:

4.3900kg

Warranty:

12
