TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 384W PoE Budget, Integrated into Omada SDN

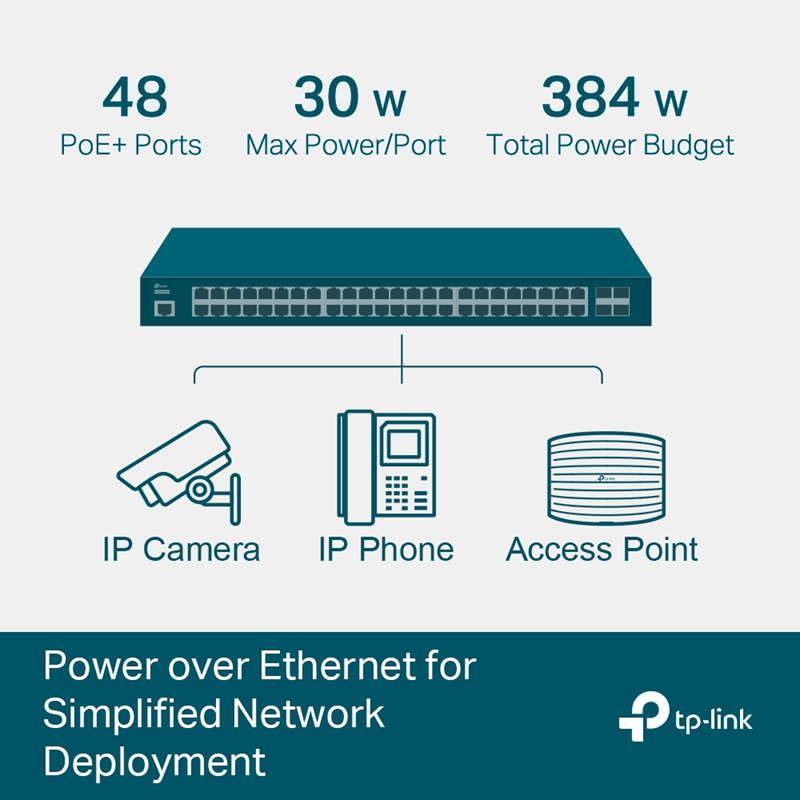

384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

HARDWARE FEATURES

Interface 48× 10/100/1000 Mbps RJ45 Ports

4× Gigabit SFP Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Fan Quantity 3

Power Supply 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) Standard: 802.3at/af compliant

PoE+ Ports: 48 Ports, up to 30 W per port

Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting Rack Mountable

Max Power Consumption 52.53 W (110 V/60 Hz) (no PD connected)

485.4 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation 179.13 BTU/hr (110 V/60 Hz) (no PD connected)

1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity 104 Gbps

Packet Forwarding Rate 77.4 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action
