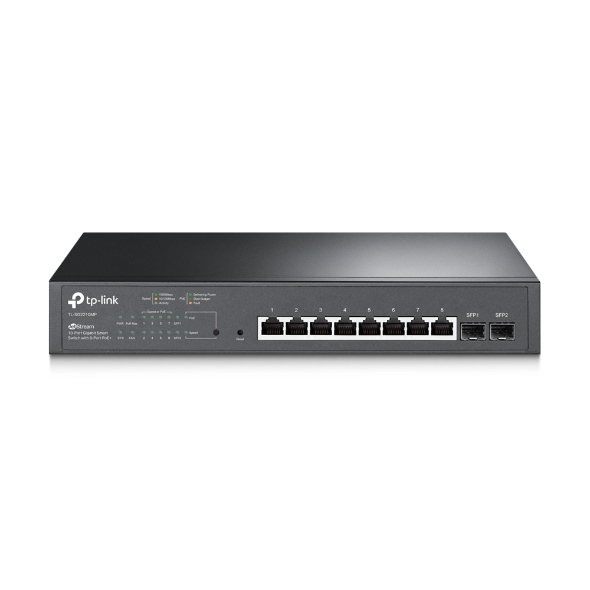

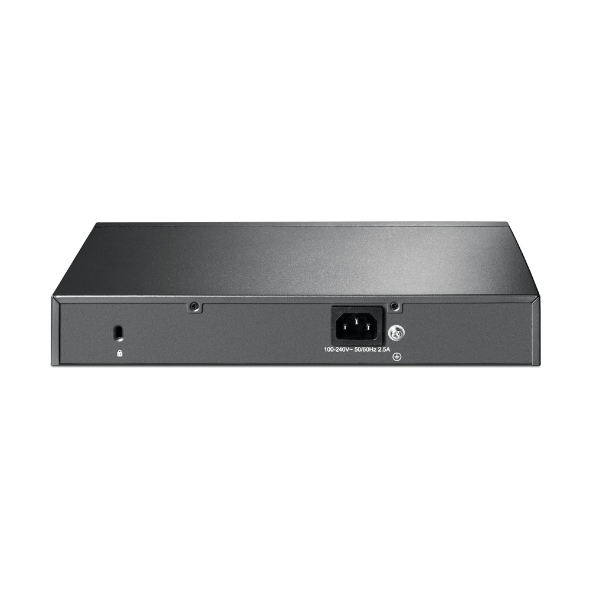

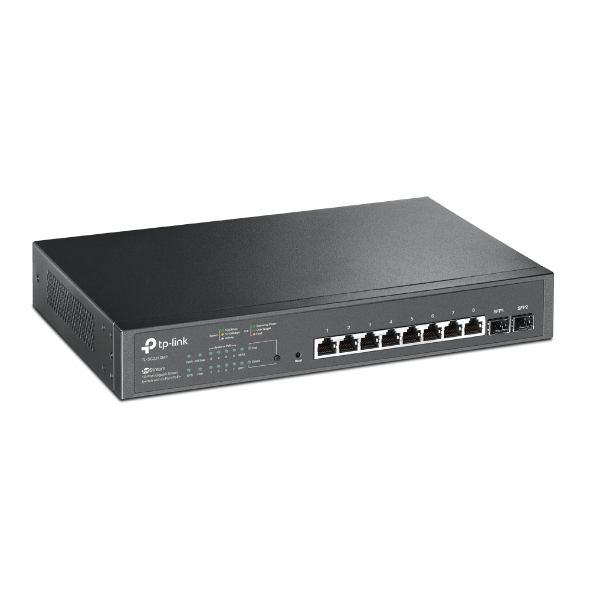

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ With Omada SDN Supported • Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 150 W and useful PoE power management features • Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network • Gigabit Ethernet connections on all ports provide full speed of data transferring • Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication • L2/L3/L4 QoS and IGMP snooping optimise voice and video applications • WEB/CLI managed modes, SNMP, RMON bring abundant management features HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots Network Media • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) • 100BASE-FX: MMF, SMF • 1000BASE-X: MMF, SMF Fan Quantity 1 Physical Security Lock Yes PoE+ Ports(RJ45) • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W Dimensions ( W x D x H ) (294 x 180 x 44 mm) Mounting Rackmount/Desktop Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected) Max Heat Dissipation • 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.9 Mpps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB
