Description

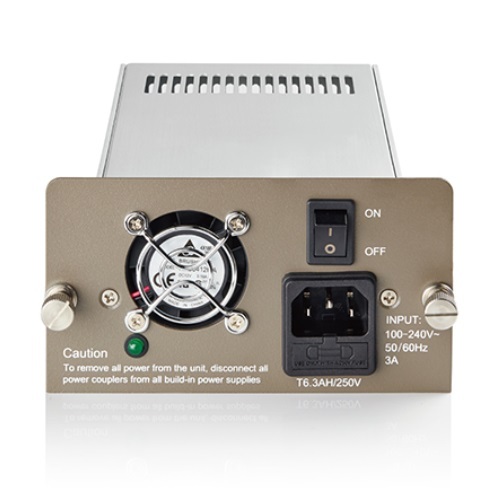

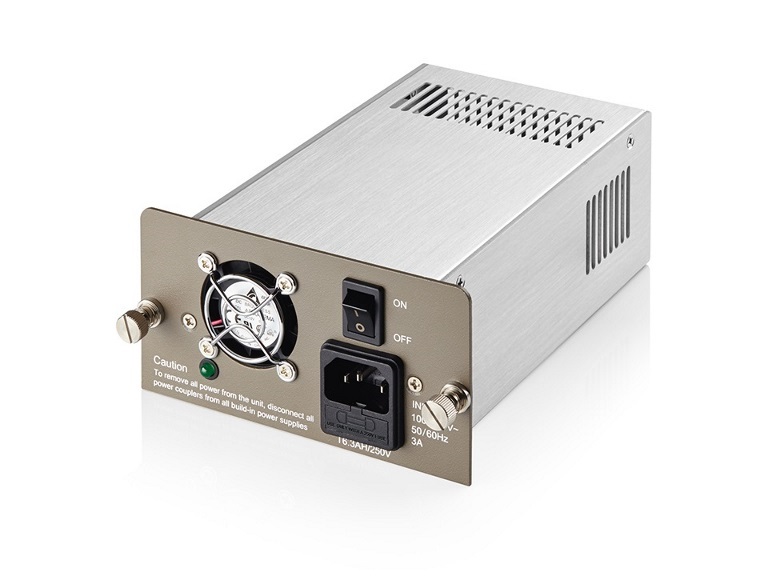

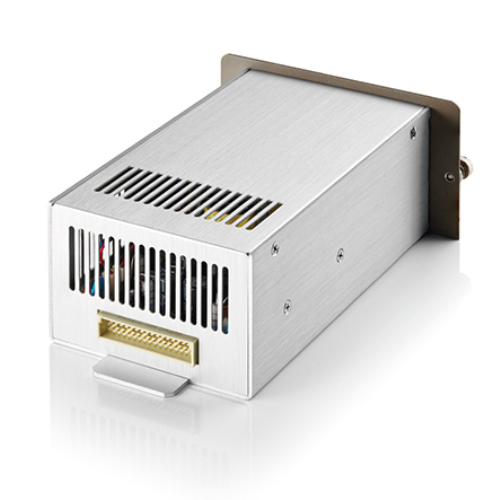

TP-Link TL-MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter


Up to 102 watts output power

Output over-voltage/short circuit/over-current protection


What this product does

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.


REDUNDANT POWER SUPPLY

AC Power Input 100-240V~ 50/60Hz 3A

DC Power Output 9.5V/9.5A

Dimensions 210*130*70 mm

Environment Operating Temperature: 0„ƒ~60„ƒ (32„‰~140„‰)

Storage Temperature: -35„ƒ~85„ƒ (-31„‰~185„‰)

Operating Humidity: 20%~90%RH non-condensing

Storage Humidity: 10%~95%RH non-condensing

Specifications
SKU NWTL-MCRP100
Barcode # 6935364099848
Brand TP-LINK
Shipping weight 1.9600kg
Shipping width 0.352m
Shipping height 0.182m
Shipping length 0.504m
Assembled length 4.040m
Assembled height 0.820m
Assembled width 2.520m

TP-Link TL-MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter

$133.40
RRP $149.00 save 10%

or 4 payments of $33.35 with Learn more

In Stock

Product Information

SKU:

NWTL-MCRP100

Brand:

TP-LINK

Barcode #:

6935364099848

Shipping Weigth:

1.9600kg

Warranty:

36
