Simplecom EC412v2 NVMe and SATA M.2 SSD to PCIe x4 Expansion Card

One M Key M.2 slot for NVMe M.2 SSD

One B Key M.2 slot for SATA M.2 SSD

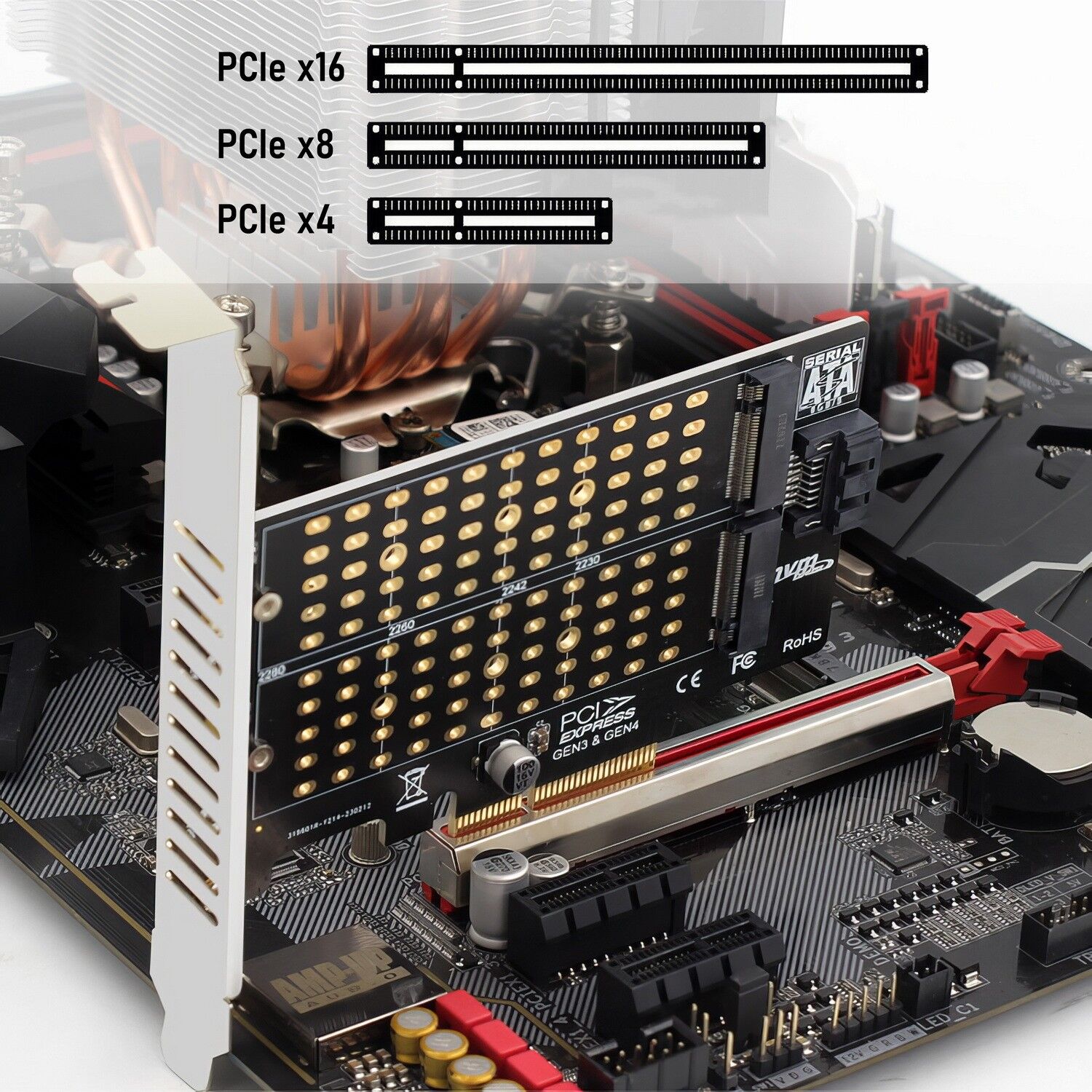

PCIe x4 interface, also compatible PCIe x8 or x16 slot

NVMe M.2 (M key) slot supports data transfer rate up to 64Gbps

SATA M.2 (B key) slot supports data transfer rate up to 6Gbps

Supports NVMe M.2 and SATA M.2 SSD simultaneously

Simplecom EC412v2 NVMe and SATA M.2 SSD to PCIe x4 Expansion Card

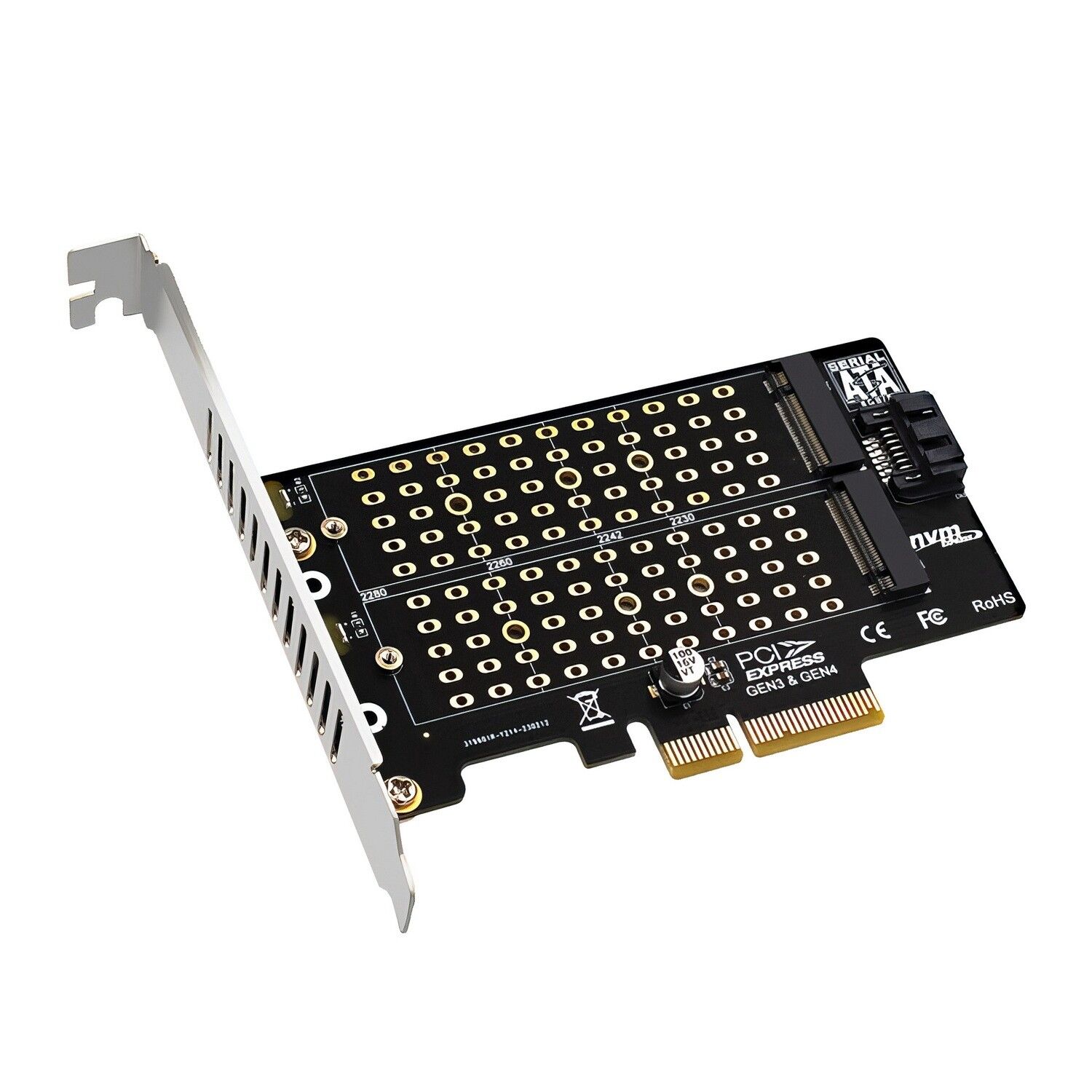

EC412v2 is a PCI Express expansion card designed to add M.2 SSD to an existing PC motherboard. This card provides two M.2 slots, offering flexible support for both NVMe or SATA based M.2 SSDs.

The M Key M.2 slot, is dedicated to PCI-E based NVMe SSD, which utilize the high-speed PCI Express interface. This allows for significantly faster data transfer rates, with speeds reaching up to 64Gbps, making it ideal for demanding applications, large file transfers, and improving system responsiveness.

The B Key M.2 slot, is designed for traditional SATA M.2 SSD. This slot connects to PC via a SATA connector, supporting data transfer rates of up to 6Gbps, which is suitable for more traditional storage needs.

The expansion card offers the convenience of integrating both fast NVMe M.2 SSDs and traditional SATA M.2 SSDs simultaneously, making it an adaptable solution for upgrading and expanding storage on existing systems.

Features

One M Key M.2 slot for NVMe M.2 SSD

One B Key M.2 slot for SATA M.2 SSD

PCIe x4 interface, also compatible PCIe x8 or x16 slot

NVMe M.2 (M key) slot supports data transfer rate up to 64Gbps

SATA M.2 (B key) slot supports data transfer rate up to 6Gbps

Supports NVMe M.2 and SATA M.2 SSD simultaneously

Specifications

Model: EC412v2

Interface: PCI Express x4, SATA 6Gbps

Number of Supported M.2 Drive: 2

Module Key: B Key (for SATA M.2 only), M Key (for NVMe M.2 only)

PCIe Bandwidth: up to 32Gbps (PCIe 3.0), 64Gbps (PCIe 4.0)

SATA Bandwidth: up to 6Gbps

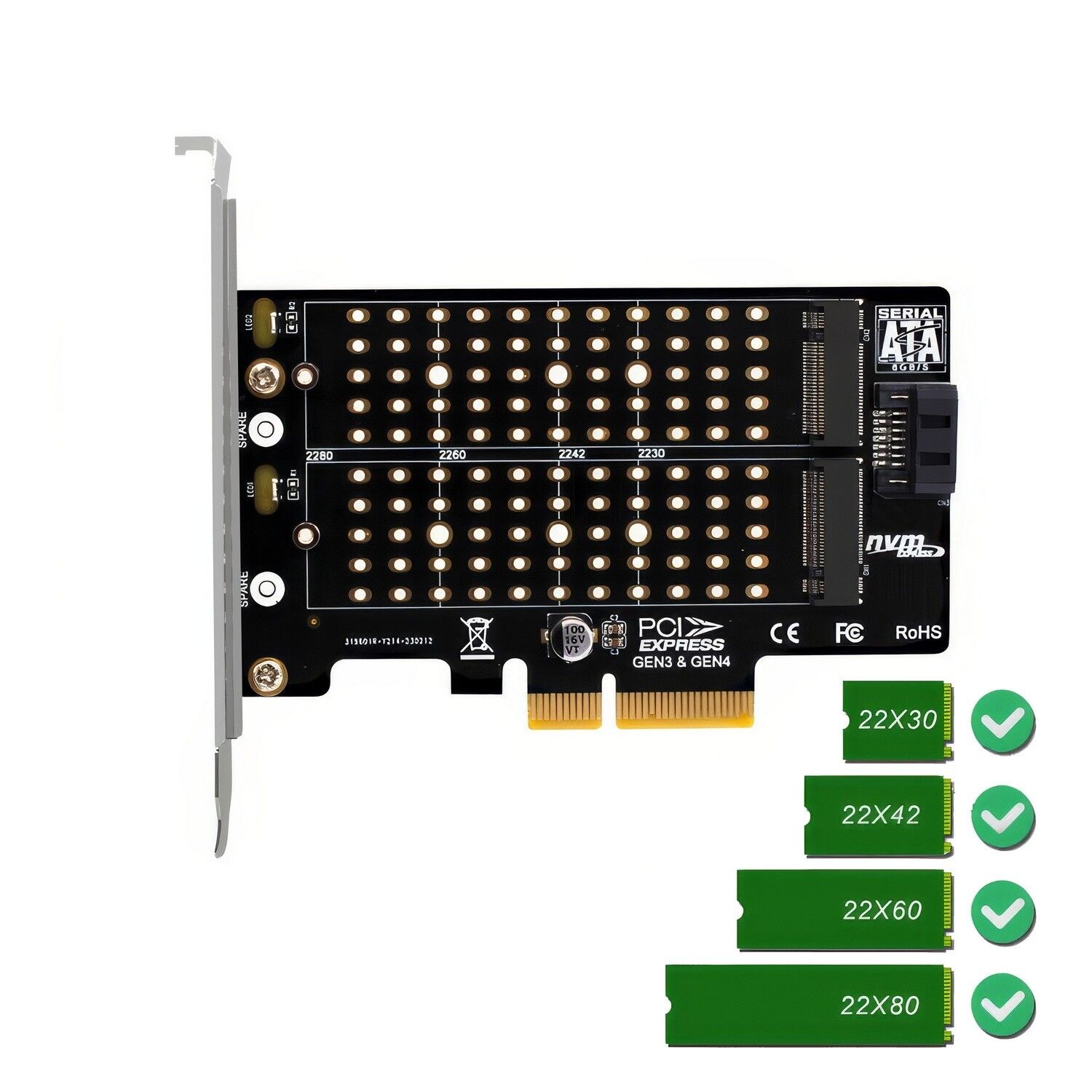

Supported M.2 SSD Size: 2230, 2242, 2260, 2280

Important Note

M Key M.2 slot is only for use with NVMe M.2 SSD, B Key M.2 slot is only for use with SATA M.2 SSD

SATA M.2 SSD on B Key slot requires a SATA 7-pin data cable connection to the motherboard for proper operation

Package Contents

1x PCIe Expansion Card

1x Low profile bracket

1x SATA Cable

Screws Set
