Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF 3.5mm Stereo with ARC 4K 60Hz

Optical SPDIF and 3.5mm audio output extracted from HDMI input

One HDMI output for HDMI pass-through

Ideal solution for connecting external speaker system with analog or optical input

SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio

HDMI 1.4b and HDCP 1.4 Compliant

Supports HDMI resolution up to 4K Ultra HD

Powered by USB, plug and play

Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF 3.5mm Stereo with ARC 4K 60Hz

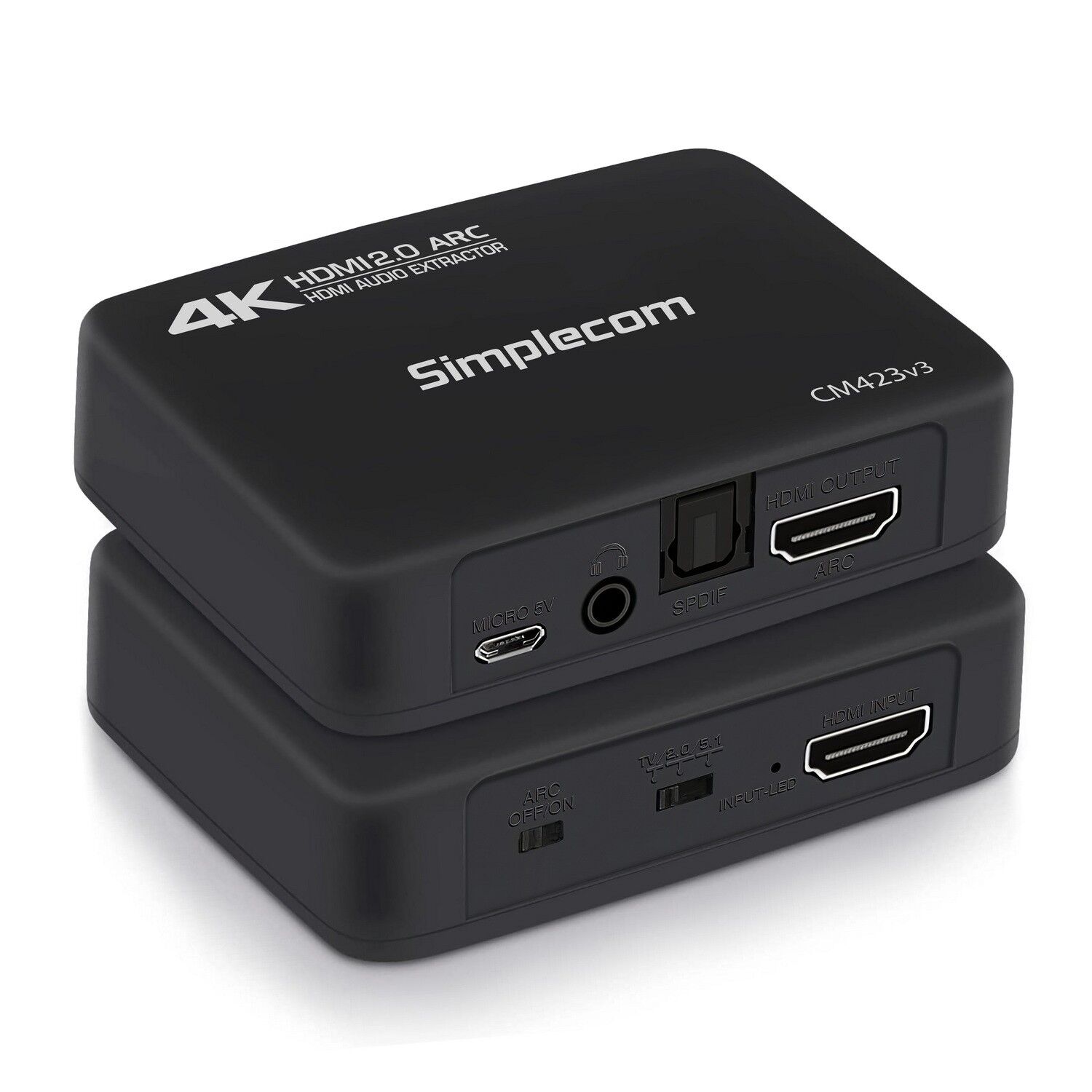

CM423v3 is an HDMI 2.0 audio extractor that supports video resolutions up to 4K 60Hz and offers audio output via optical SPDIF or 3.5mm stereo. It also features ARC (Audio Return Channel) compatibility, allowing direct connection to an ARC-enabled TV. This makes it an ideal solution for outputting audio to an external speaker system with analog or optical inputs, especially for audio systems without HDMI inputs.

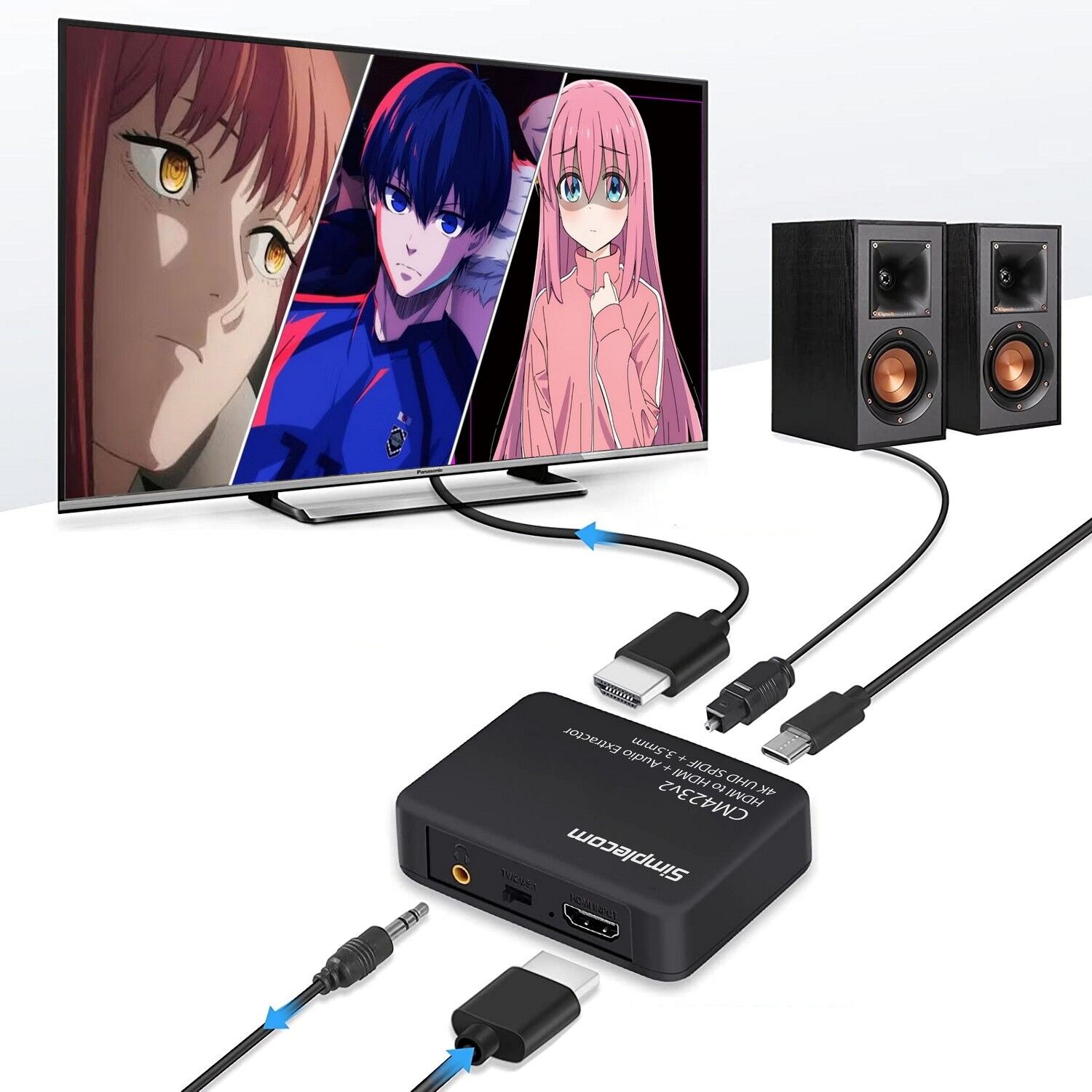

It allows you to extract embedded audio from an HDMI source or directly from an ARC-compatible TV, and output the audio separately through either a stereo connector or a digital optical SPDIF connector. It complies with HDMI 2.0b standards, and supports up to 18Gbps of bandwidth, perfect for home theatre setups, 4K gaming, or video streaming on a 4K display. This compact adapter can be placed behind your AV equipment and powered via USB, either from a wall charger or an available USB port on your TV.

Features

Compliant with the HDMI 2.0b standard for broad compatibility

Supports HDMI input audio extraction or HDMI ARC audio extraction modes

Supports 18Gbps bandwidth and HDMI input output resolution up to 4K 60Hz

Allows HDMI input to be passed through to an HDMI output while extracting audio for external sound system

Supports HDMI ARC, allowing direct audio extraction from ARC-enabled TV

Optical SPDIF and 3.5mm audio output extracted from HDMI input or ARC

HDCP 2.2 compliant, ensuring compatibility with encrypted media

Powered by USB, micro USB port for power input

Supports compressed audio DTS Digital, Dolby Digital and uncompressed audio PCM, LPCM

Specifications

HDMI Version: HDMI 2.0b (backwards compatible)

HDMI resolution support: 480i 480p 576i 576p 720p 1080i 1080p 4K 60Hz

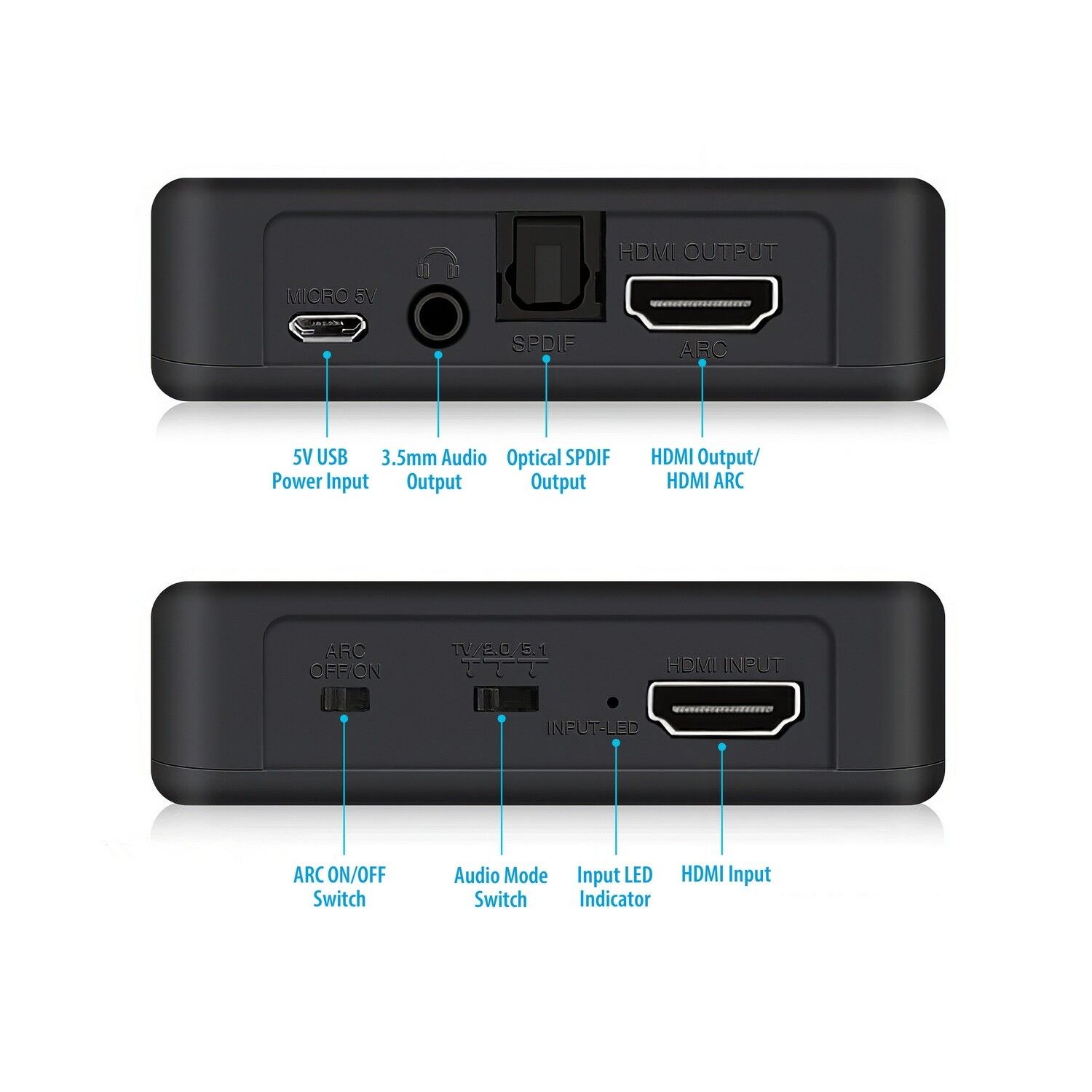

Input: 1x HDMI Input

Audio Outputs: 1x SPDIF (Optical), 1 x 3.5mm Stereo Audio (Analog)

Video Output: 1x HDMI output (HDMI pass-through)

ARC Support: Yes (with switch)

HDMI 3D Support: Yes

HDCP Version: HDCP 2.2

Max Bandwidth: 600MHz

Max Baud Rate: 18Gbps

Support Color Format: 24bit, 30bit, 36bit deep color

Digital audio Support: Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM

Max Input Cable Distance: 10m AWG26 HDMI standard cable

Max Input Cable Distance: 10m AWG26 HDMI standard cable

Power Input: Micro USB (5V 1A)

Dimension: 75 x 55 x 25mm (LxWxH)

Weight: 43g

Package Contents

1x HDMI Audio Extractor

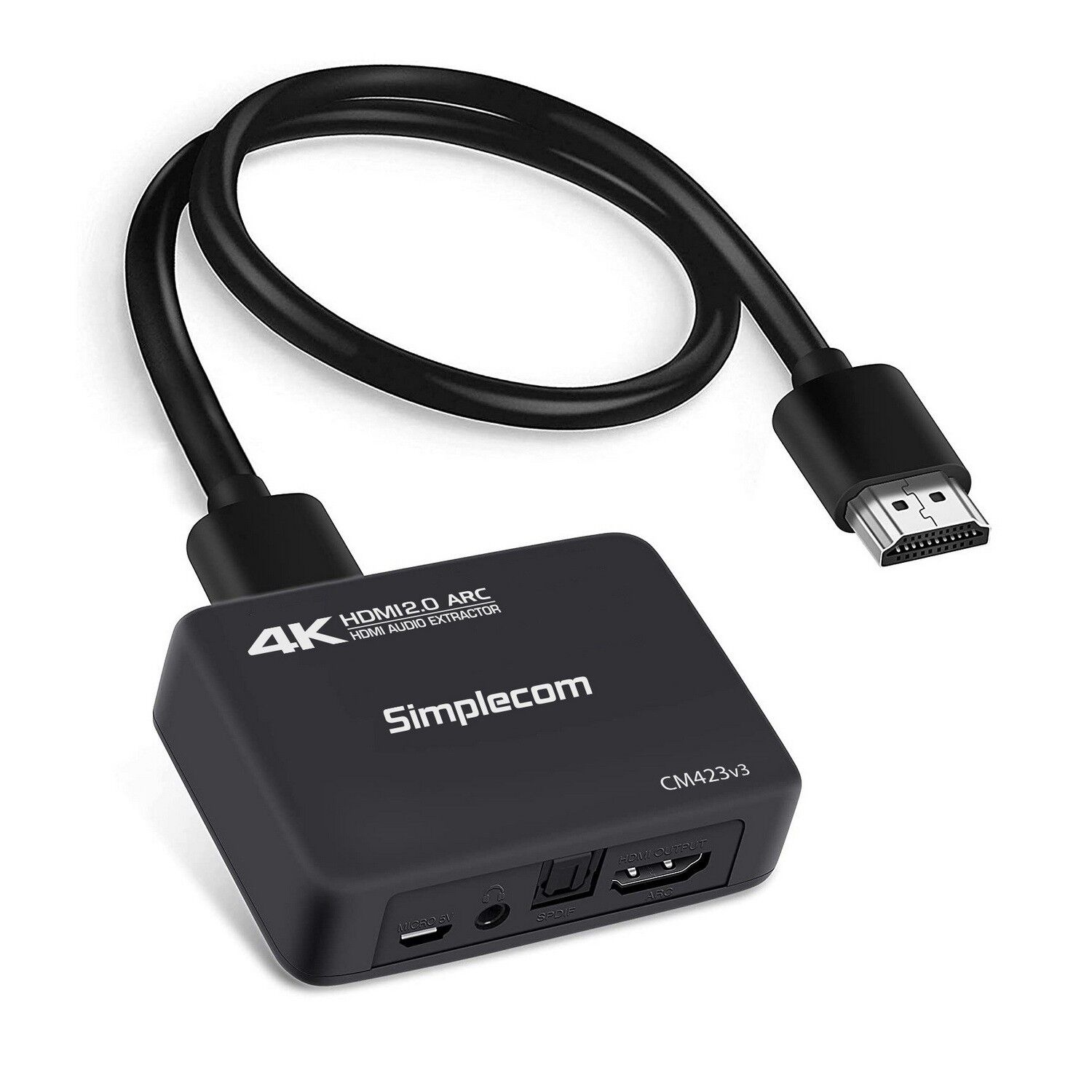

1x 0.5M HDMI Lead

1x USB Power cable

1x Optical Audio Cable

1x User Manual
