Simplecom CHT590 USB-C SuperSpeed 9-in-1 Multiport Docking Station HDMI 2.0

9-in-1 USB-C multiport docking station for comprehensive expansion to your laptop

Single USB-C to extra USB ports, HDMI 2.0, Gigabit Ethernet, Card Reader and PD

SuperSpeed USB ports support data transfer rate up to 5Gbps

HDMI 2.0 port supports up to 4K 60Hz resolution in Mirror or Extended mode

Gigabit Ethernet support connection speeds of up to 1000Mbps

2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate

USB-C PD port for charging the laptop with up to 100W of power

Durable stylish aluminium alloy housing

Lightweight and portable, easy to carry along when travelling

Built-in flexible USB-C Cable

Plug play, no driver software required

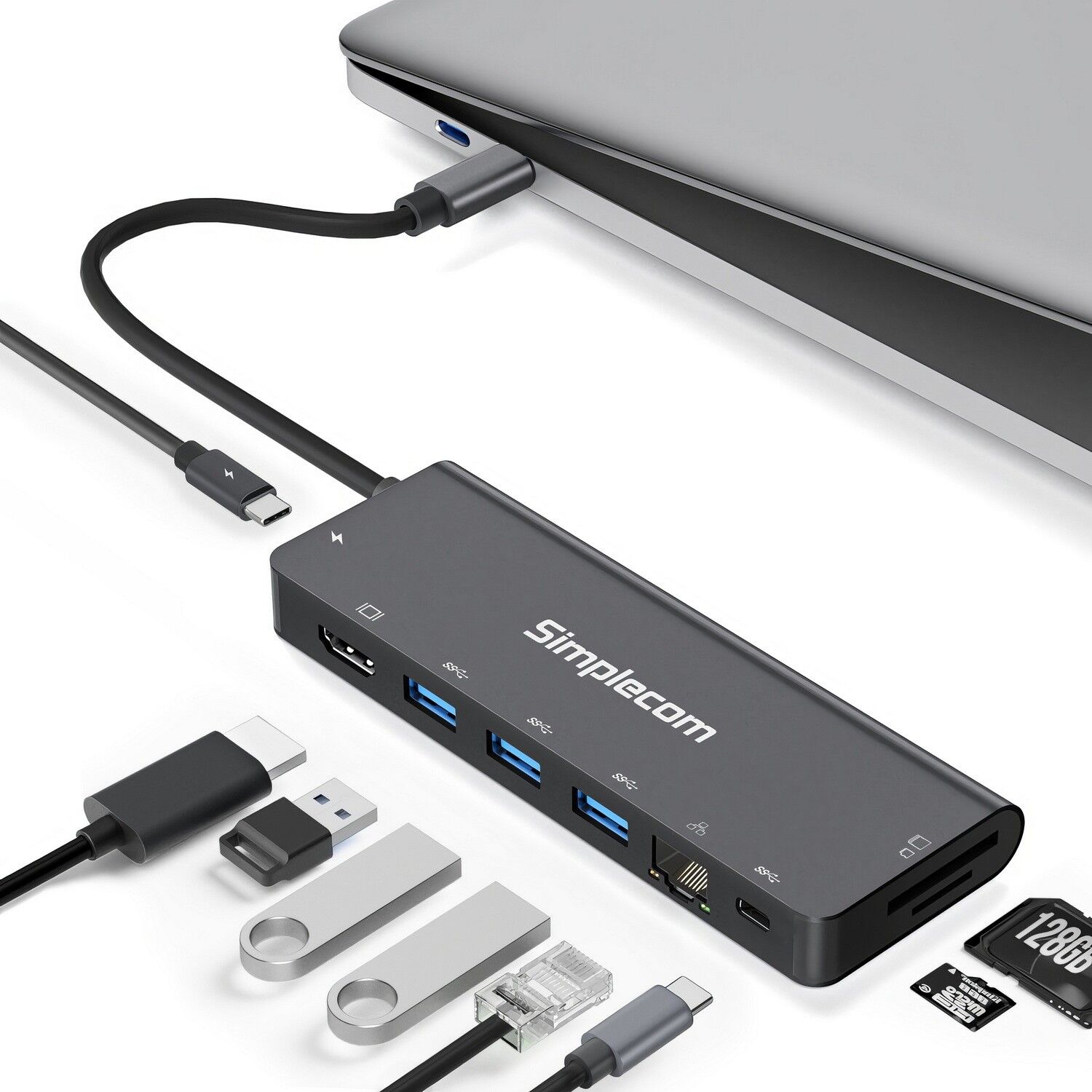

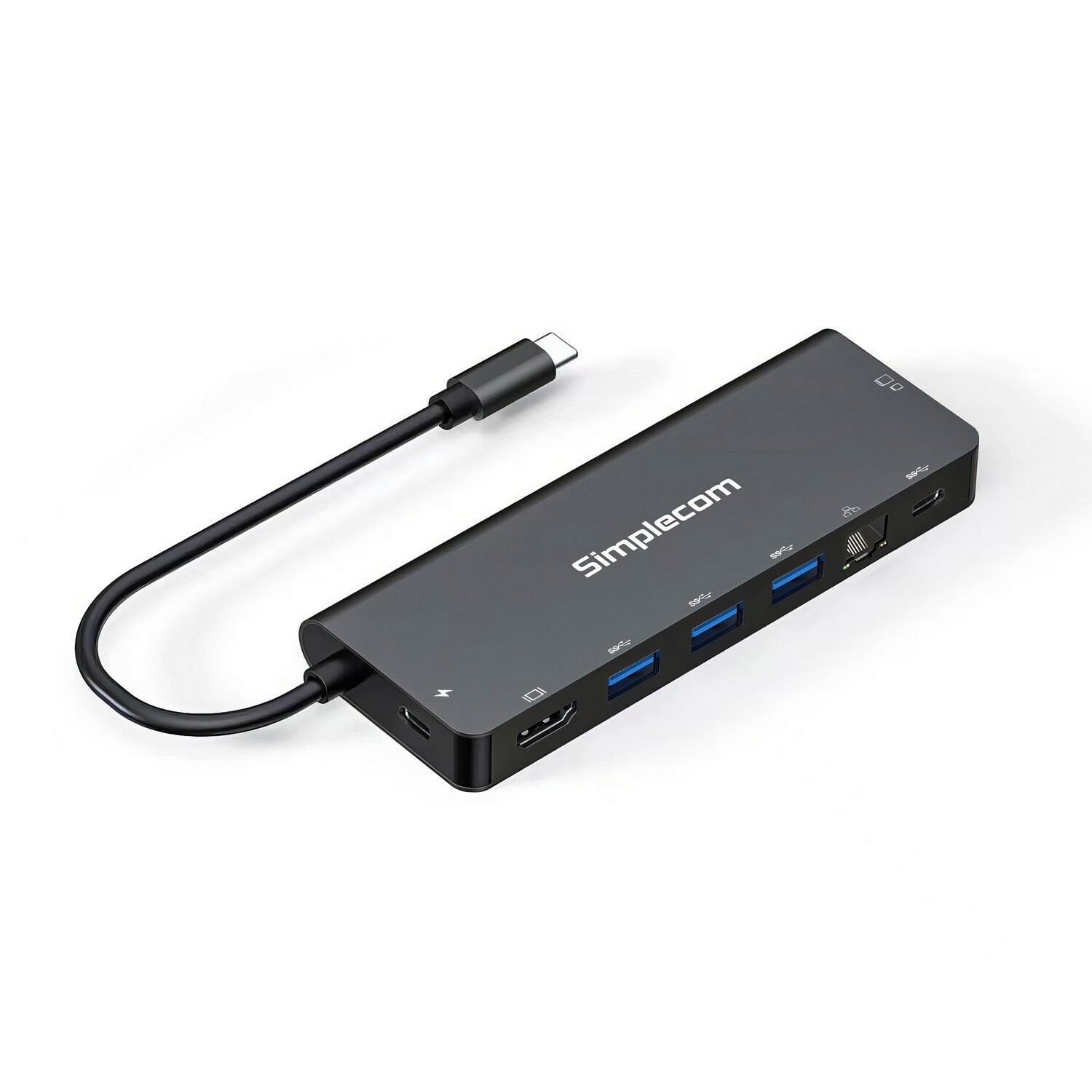

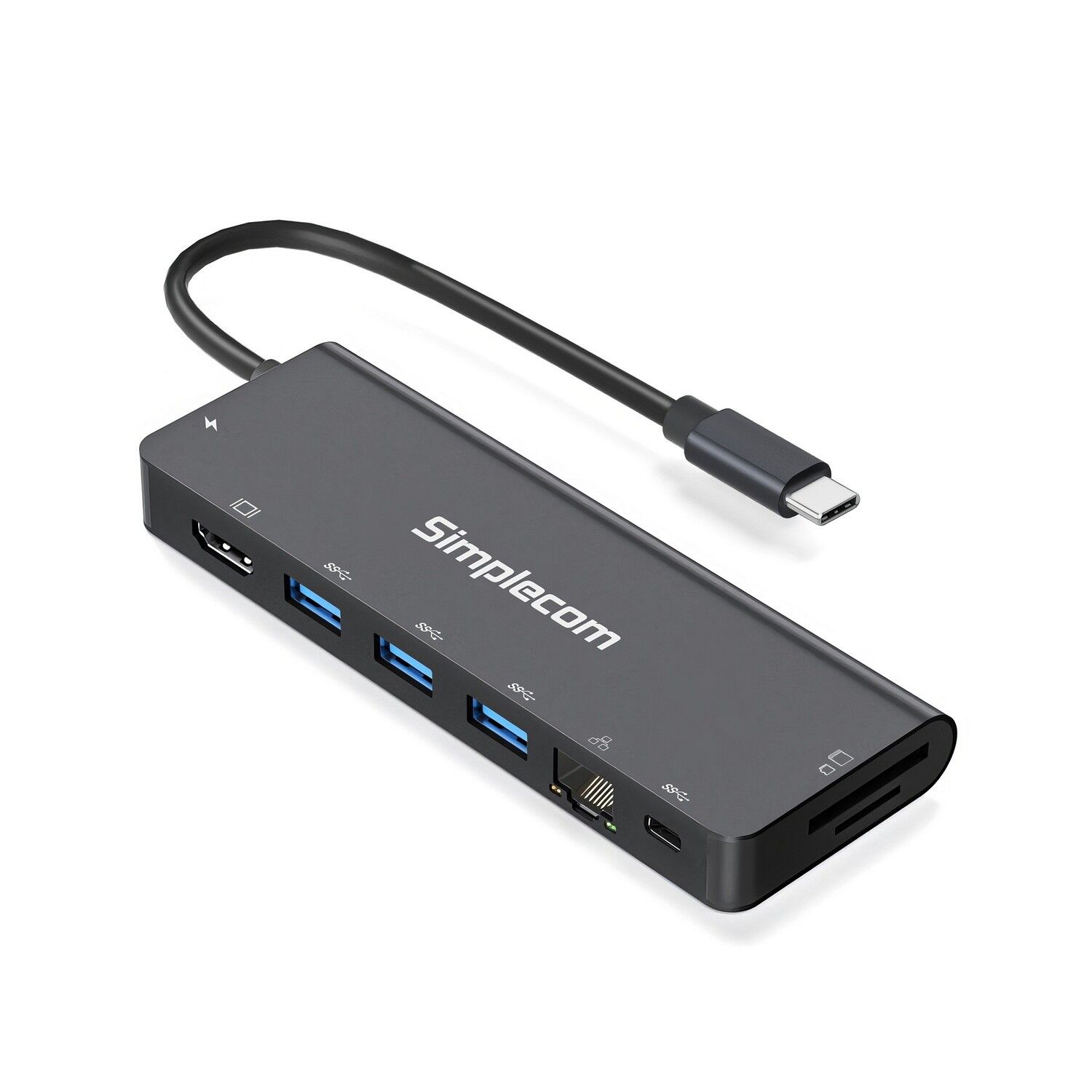

CHT590 is a 9-in-1 USB-C multiport docking station that enhance your laptop fts connectivity through its USB-C port. It transforms a single USB-C port into nine ports, including three SuperSpeed USB-A ports, one SuperSpeed USB-C port, dual slot card reader, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.

If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.

Specifications

Host Interface: USB-C

USB Hub: 3x USB-A Female (SuperSpeed 5Gbps), 1x USB-C Female (SuperSpeed 5Gbps)

HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K 60Hz)

Network Port: RJ45 Gigabit Ethernet (10 100 1000 Mbps)

Card Reader: SD and MicroSD (SuperSpeed 5Gbps)

PD Input: USB-C Female (for charging only), up to 100W

Operation Temperature: 0 - 45 degreeC

Housing Material: Aluminium

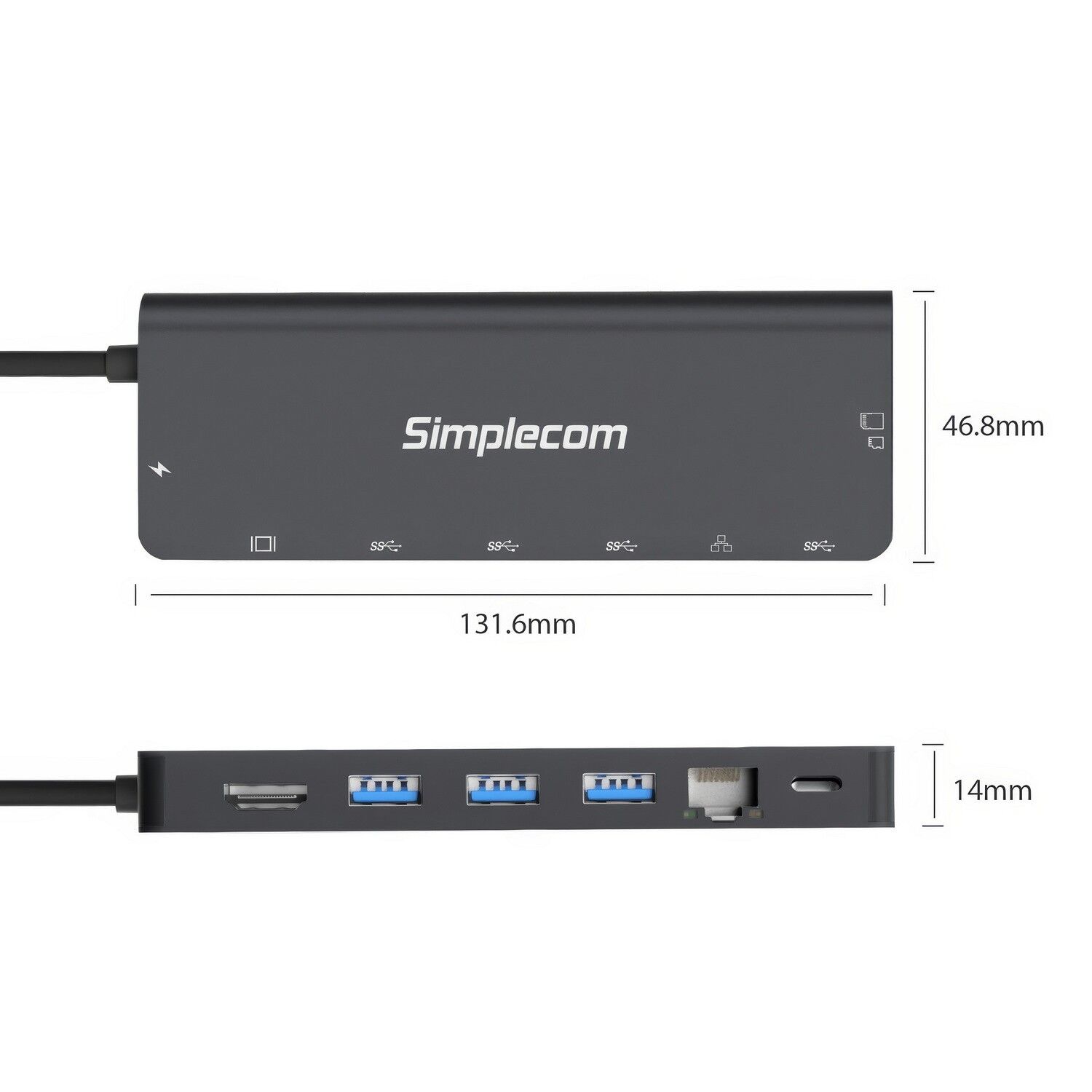

Dimensions: 13 x 4.7 x 1.4 cm

Cable Length: 19 cm

Weight: 88g

System Requirements

USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support

Thunderbolt USB-C port or USB4 port on laptop

Operating system: Windows 10 or above, macOS 10.12 or above

Laptop GPU with DP1.4 supports up to 4K 60Hz, laptop GPU with DP1.2 supports up to 4K 30Hz

Important Note

Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function

4K 60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)

The USB-C PD port is for PD charging only, not for data transfer
