Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,

Efficient 1-Liter Fanless PC | Harness 13th Gen Raptor Lake-U Power

Shuttle fts latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more.

FORM FACTOR Shuttle 1.3L Chassis

PROCESSOR Intel Raptor Lake -U series

MEMORY 2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB)

Dual Channel DDR5 up to 5200Mhz

VIDEO OUTPUT (1)HDMI 2.0b (1)DisplayPort 1.4 (1) VGA video outputs

Support triple independent display

AUDIO Realtek ALC888S

2 channel High Definition Audio

ETHERNET (1)Intel GbE Lan (1)Intel 2.5 GbE Lan

10Mb s,100Mb s,1Gb s operation

Support Wake-On-LAN function

Support Teaming function

STORAGE INTERFACE SATA for HDD SSD

ONBOARD CONNECTORS (1) 2.5 inch SATA connector

(1) USB2.0 header

(1) Auto Power on Jumper

(1) RS232 voltage switch

(1) External 4 pin header

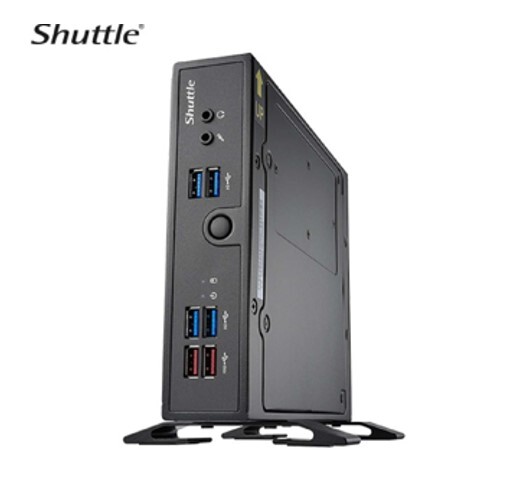

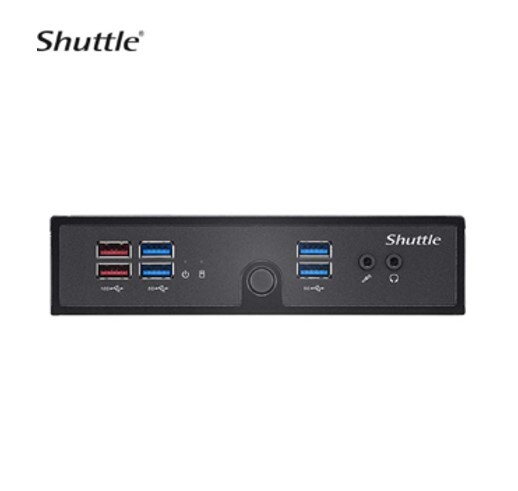

FRONT PANEL (1) Power on button

(1) Power LED

(1) HDD LED

(2) USB 3.2 Gen2

(4) USB 3.2 Gen1

(1) Mic in

(1) Headphone out

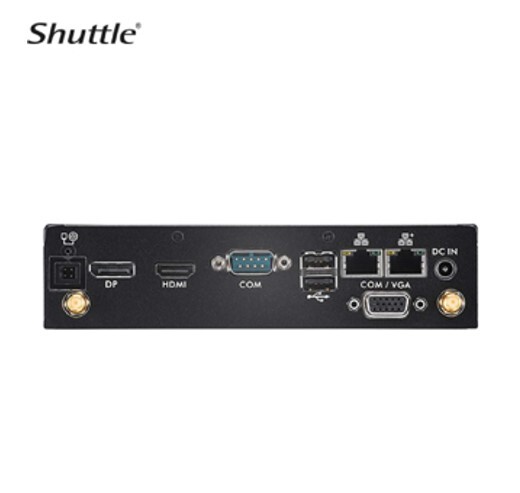

BACK PANEL (2) RJ45 LAN

(1) HDMI

(1) DisplayPort

(1) VGA

(1) RS232 RS422 RS485

(2) USB 2.0

(1) External 4 pin header (Clear CMOS Power Switch 5V)

(1) DC-in

(1) Kensington lock

(2) Antenna fixture

DRIVE BAYS (1) 2.5 ft HDD SSD bay

POWER 90W 19V Adapter bundled

Input:100- 240V AC

ACCESSORIES XPC Multilanguage Quick User Guide

XPC DVD Driver

Food stand

VESA mount

VESA Screw pack

Power cord

Thermal Grease

HDD Screw pack

90W adapter

EXPANSION SLOT (2) M.2 2280 Type M key socket

(1) M.2 2230 Type E Key socket

OS SUPPORT Windows 11, Linux

GRAPHICS Integrated Intel Iris Xe

(Feature depends on processor)

CERTIFICATION Safety certification : CB , BSMI , cTUVus

EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA

OPERATING TEMPERATURE 0„ƒ~40„ƒ
