Description

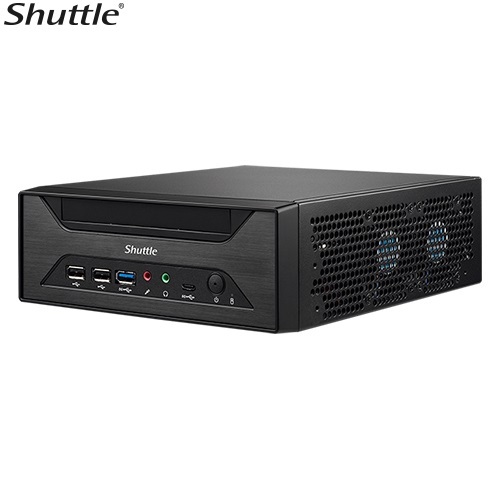

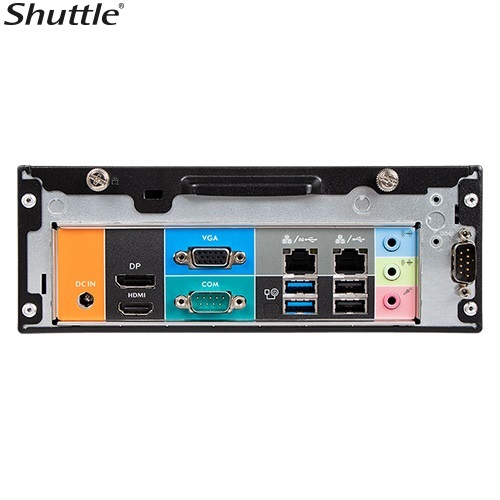

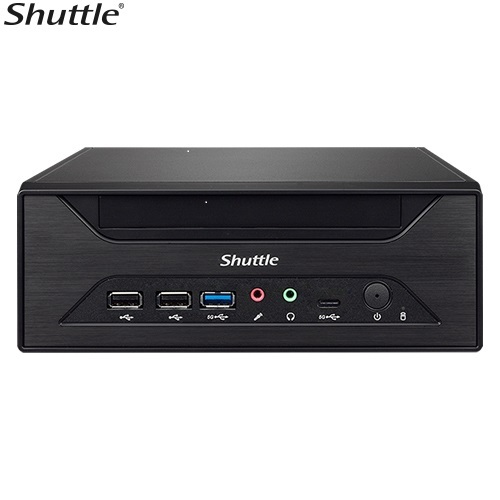

Shuttle XH610G Intel ® 14th/13th/12th Gen LGA1700 socket, DDR5, 3L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, 2x M.2 2280, (VGA & RS232 both optional), 180W The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with Intel® H610 chipset, it supports Intel® 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content. In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0, RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing 24/7 operation even in 50⁰C environments. Form Factor Mini-ITX MB 3.5 L chassis Chipset Intel H610 Express chipset Memory 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz Video Output HDMI + Display + D-Sub (VGA) port triple display Audio Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio Expansion Slot (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket Ethernet (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Storage Interface SATA 6.0Gb/s interface
Specifications
SKU SYS-XH610G
Barcode # 887993006789
Brand Shuttle
Shipping weight 0.4000kg
Shipping width 0.300m
Shipping height 0.172m
Shipping length 0.338m

Shuttle XH610G Intel 14th 13th 12th Gen LGA1700 socket, DDR5, 3L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot

$791.71
RRP $934.00 save 15%

or 4 payments of $197.93 with Learn more

Only 1 Left!

Product Information

SKU:

SYS-XH610G

Brand:

Shuttle

Barcode #:

887993006789

Shipping Weigth:

0.4000kg
