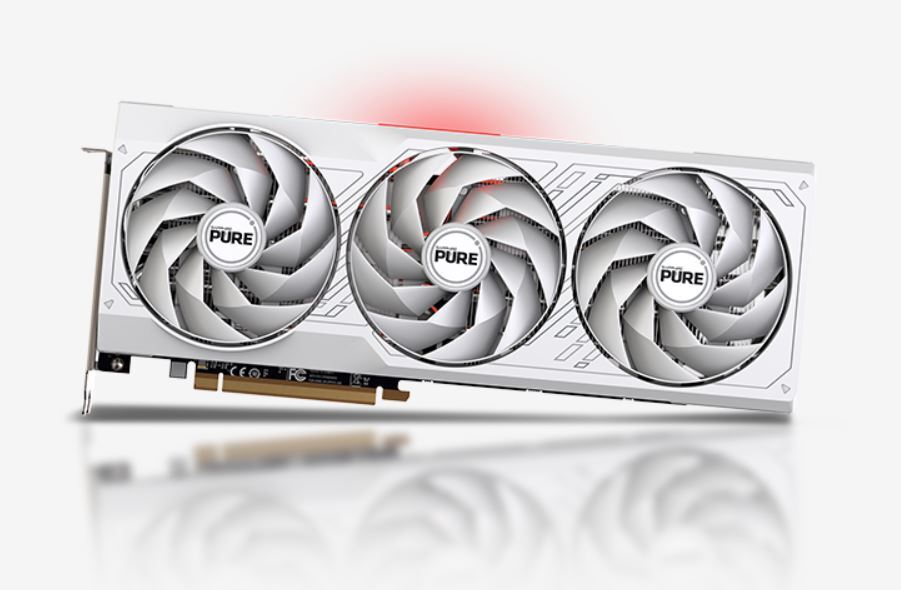

SAPPHIRE PURE AMD RADEON„ RX 7700 XT GAMING OC 12GB GDDR6 DUAL HDMI / DUAL DP

GPU

AMD Radeon„ RX 7700 XT Graphics Card

5nm GPU

AMD RDNA„ 3 Architecture

Engine Clock

Boost Clock: Up to 2584 MHz

Game Clock: Up to 2226MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI„: 7680×4320

DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI

2x DisplayPort
