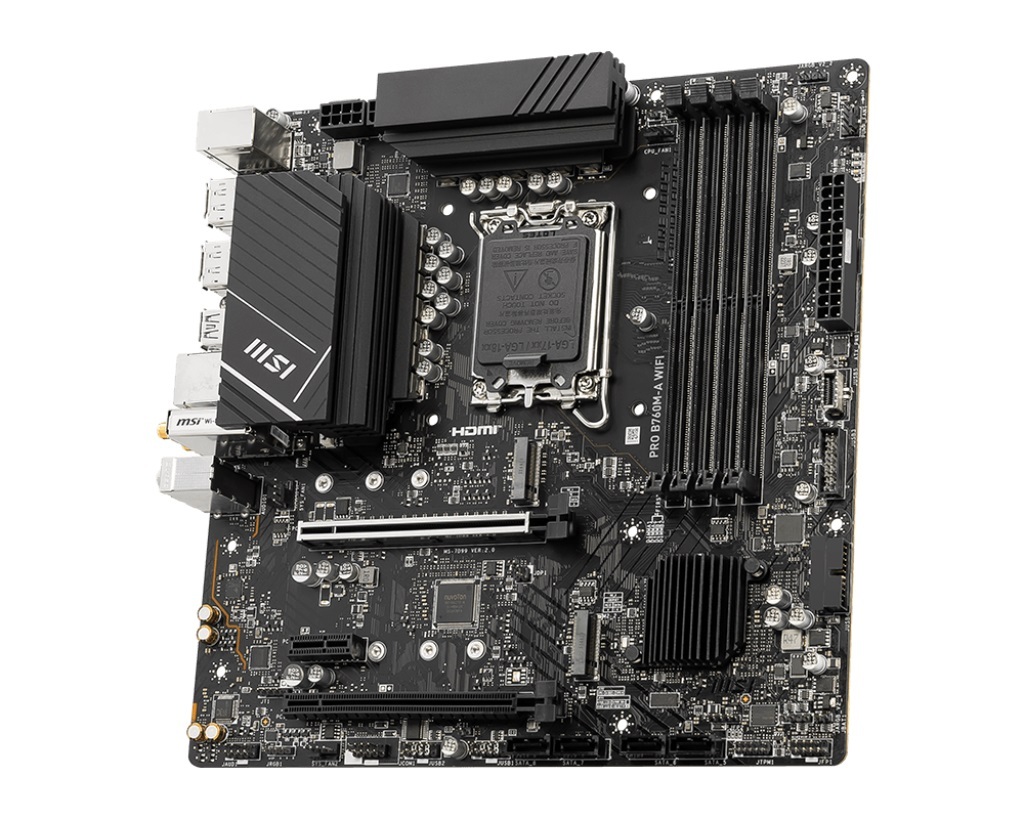

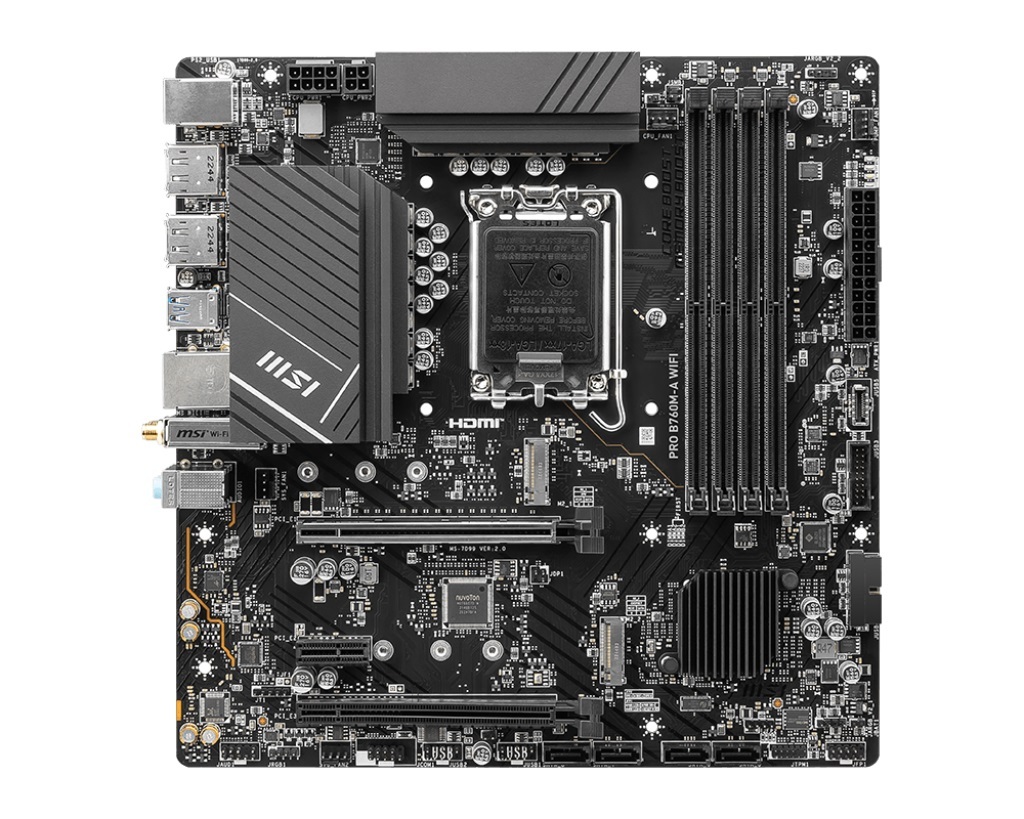

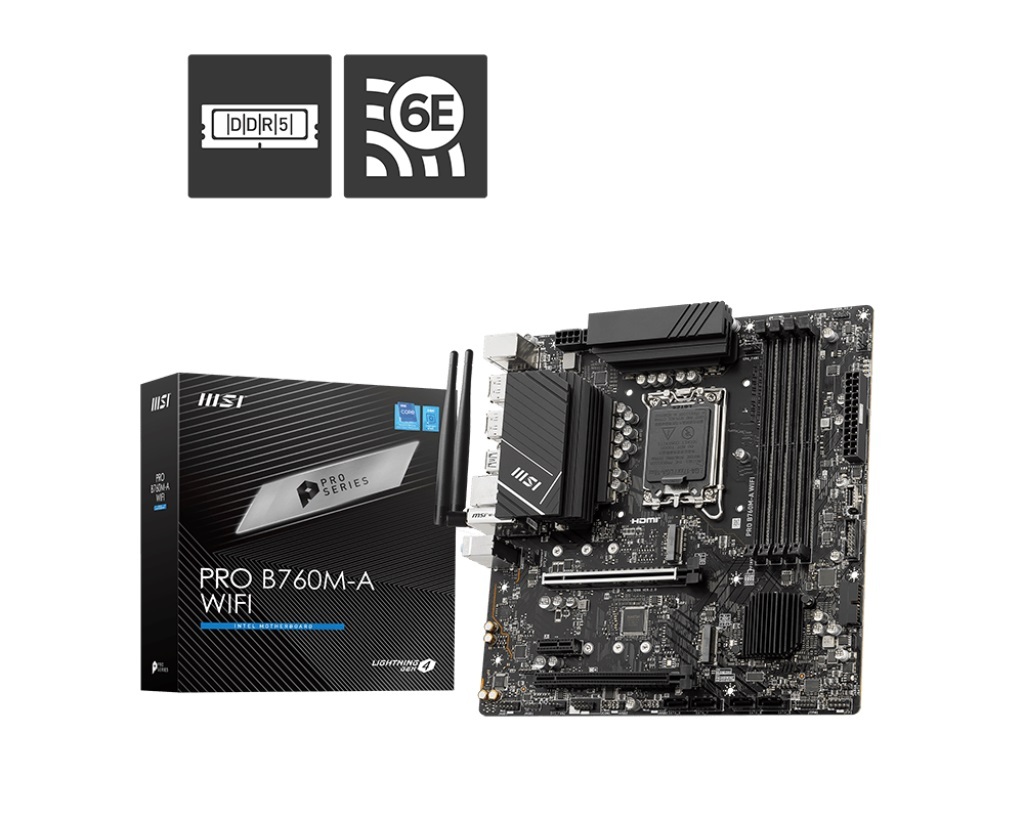

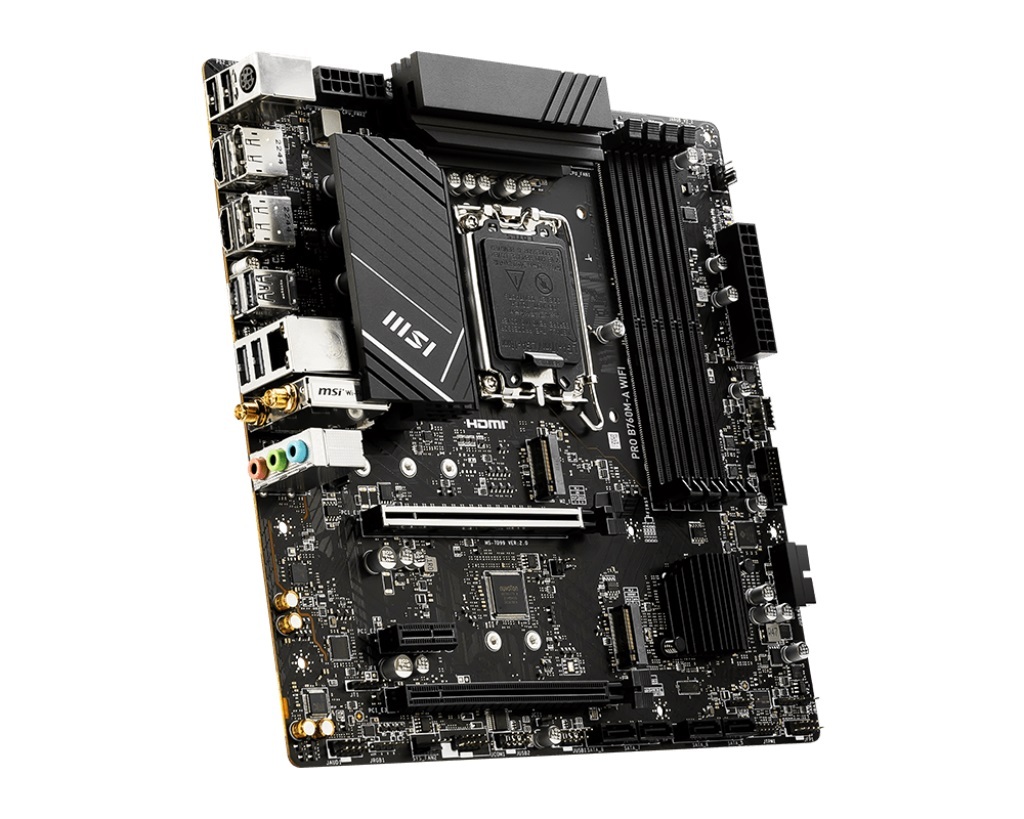

MSI PRO B760M-A WIFI mATX Motherboard, 4x DDR5~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0

Features:

Supports 12th/13th Gen Intel Core„, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thicke

Specifications:

CHIPSET INTEL B760

CPU SUPPORT Supports 12th/13th Gen Intel Core„ Processors, Pentium Gold and Celeron Processors

LGA 1700

MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS 2x HDMI„

2x DisplayPort

Support HDMI„ 2.1, maximum resolution of 4K 60Hz*

Support DP 1.4, maximum resolution of 4K 60Hz*

EXPANSION SLOT

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G port

USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION mATX 243.84mmx243.84mm
