Description

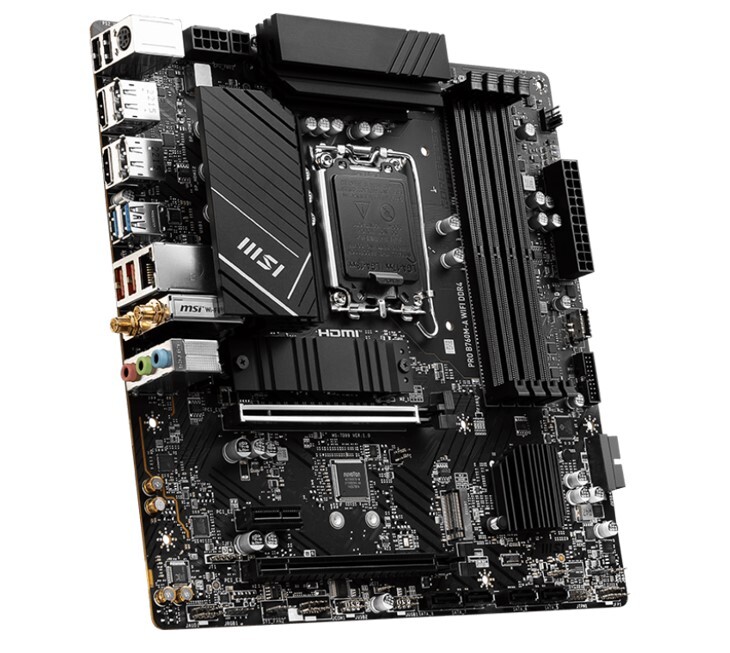

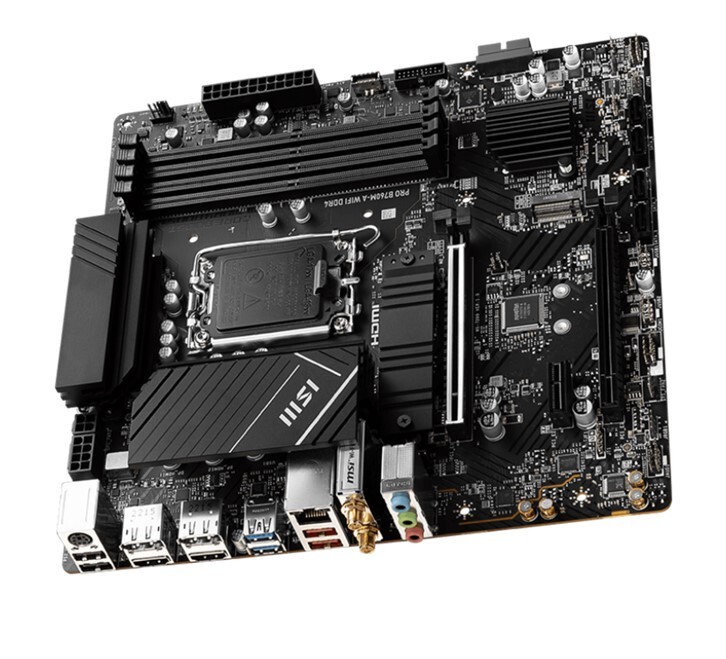

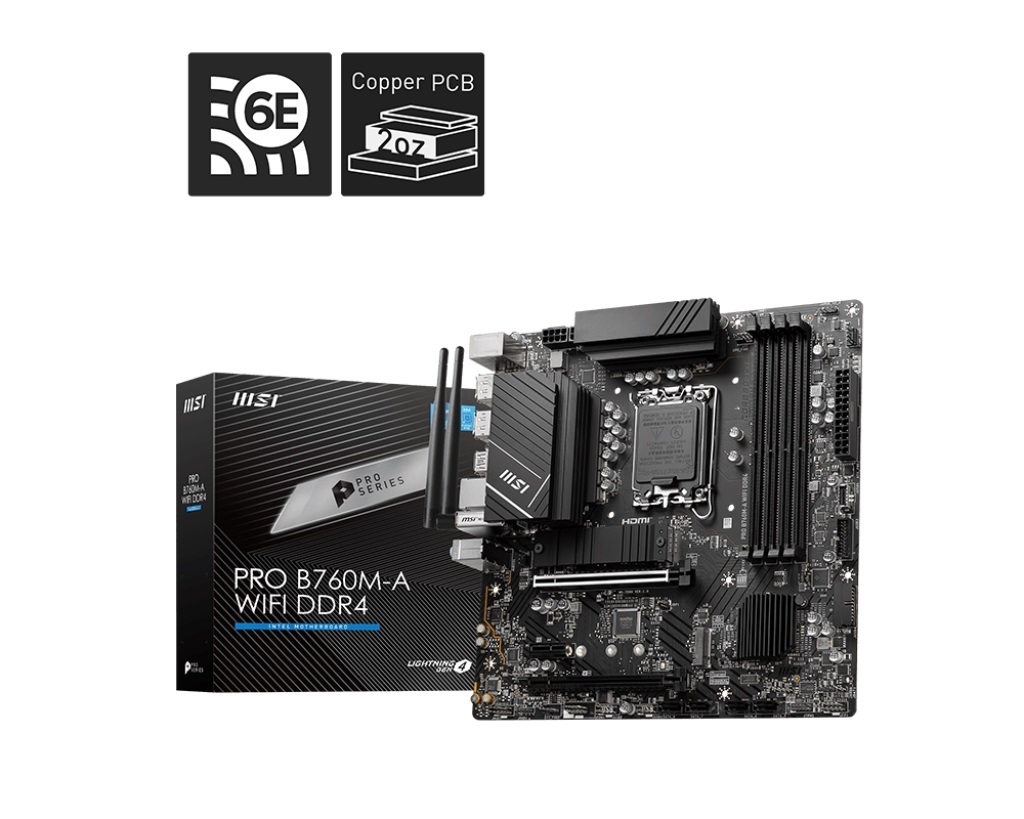

MSI PRO B760M-A WIFI DDR4 mATX Motherboard, 4x DDR4~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0 FEATURES: Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost SPECIFICATIONS: CHIPSET INTEL B760 CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR4, Maximum Memory Capacity 128G ONBOARD GRAPHICS 2x HDMI™ 2x DisplayPort Support HDMI™ 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) STORAGE 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB DIMENSION mATX 243.84mmx243.84mm
Specifications
SKU MBM-PROB760M-AWIFID4
Barcode # 4711377026383
Brand MSI
Shipping weight 1.8800kg
Shipping width 0.374m
Shipping height 0.156m
Shipping length 0.400m
Assembled length 3.000m
Assembled height 0.560m
Assembled width 2.740m

MSI PRO B760M-A WIFI DDR4 mATX Motherboard 4x DDR4~128GB 2x PCI-E x 16 1x PCI-E x 1 2x M.2 4x SATA 4x USB 3.2 2x USB 2.0

$198.22
RRP $320.00 save 38%

or 4 payments of $49.55 with Learn more

In Stock

Product Information

SKU:

MBM-PROB760M-AWIFID4

Brand:

MSI

Barcode #:

4711377026383

Shipping Weigth:

1.8800kg
