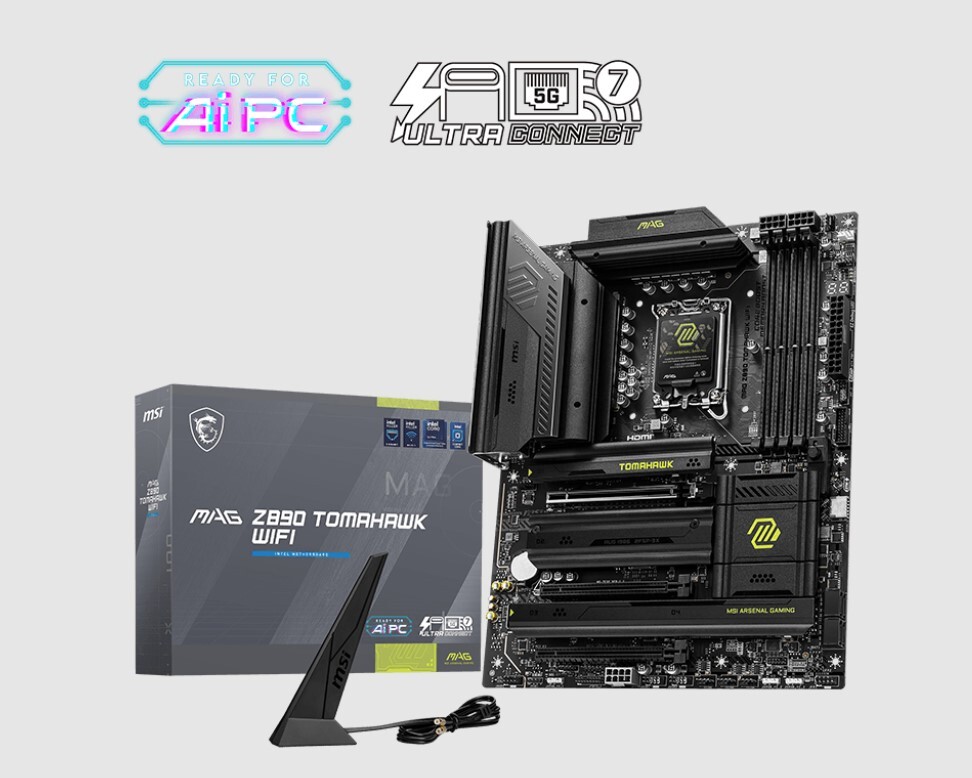

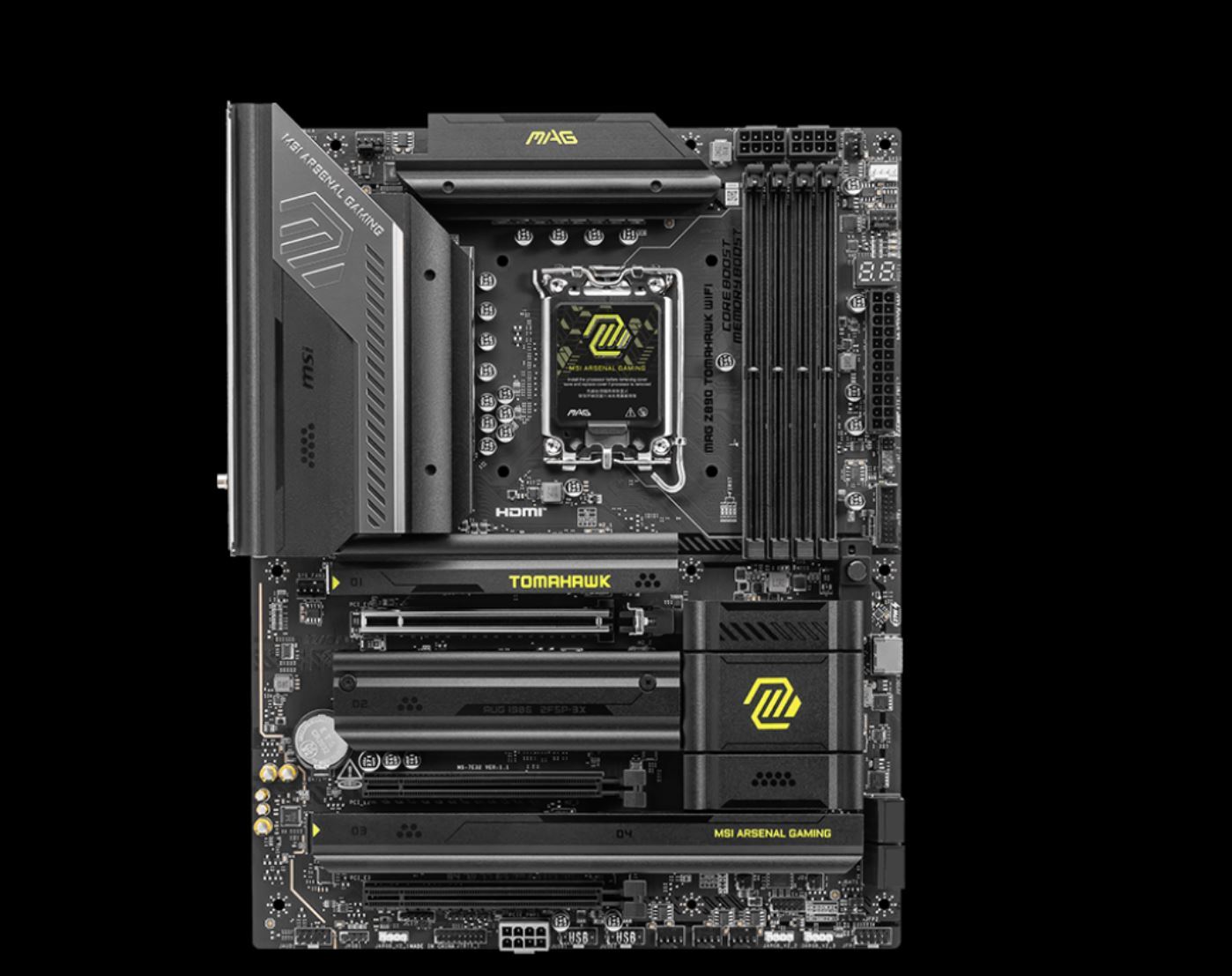

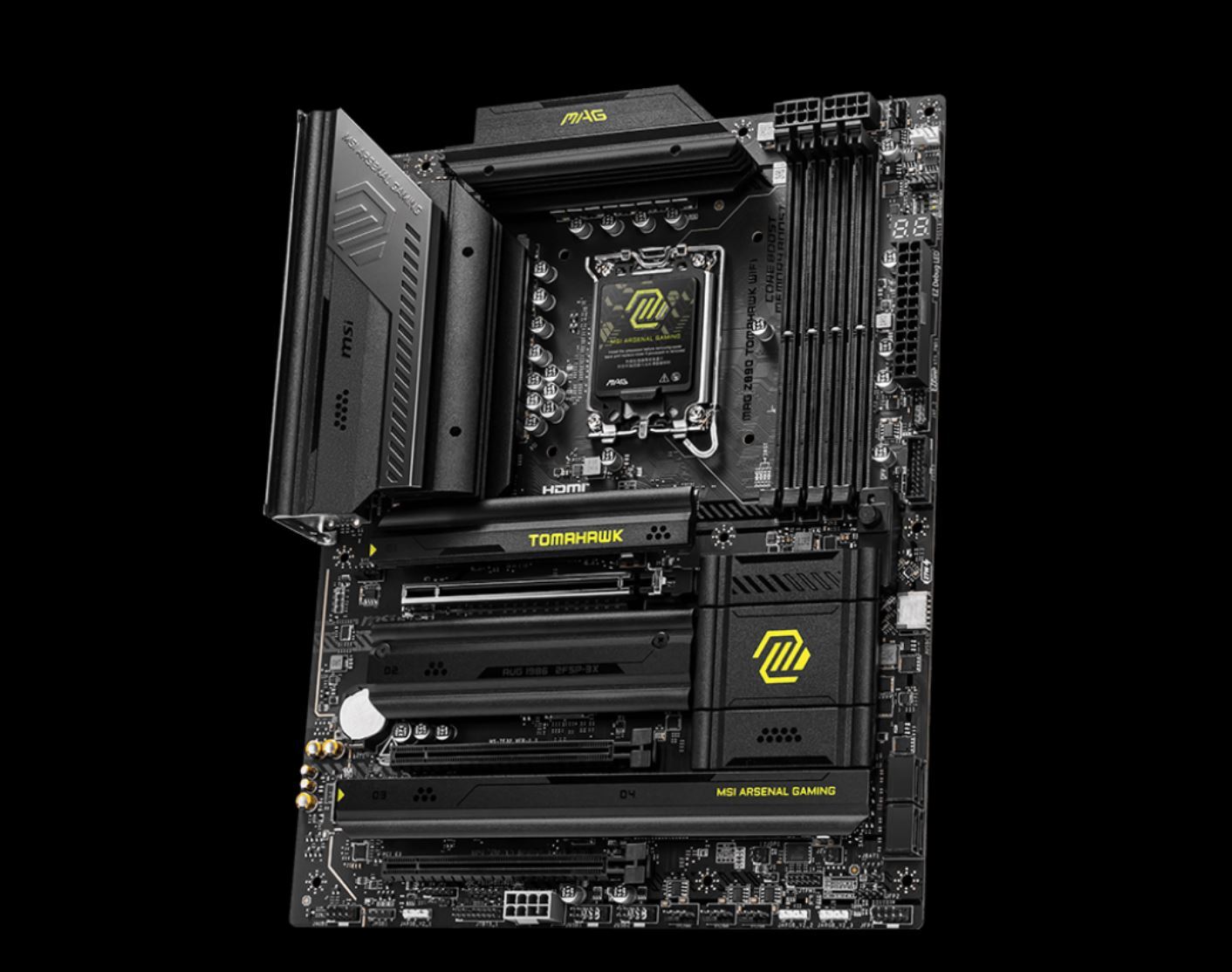

MSI MAG Z890 TOMAHAWK WIFI Motherboard, 4x DDR5 256GB, 3x PCI-E x 16, 4x M.2, 4x SATA 6G, 7x USB 3, 3x USB-C

Chipset INTEL Z890

CPU Supports Intel Core„ Ultra Processors (Series 2) LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 9200 - 6400 (OC) MT s 6400 - 4800 (JEDEC) MT s

Max. overclocking frequency:

1DPC 1R Max speed up to 9200 MT s

1DPC 2R Max speed up to 7200 MT s

2DPC 1R Max speed up to 4800 MT s

2DPC 2R Max speed up to 4800 MT s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

Onboard Graphics

1x HDMI„

Support HDMI„ 2.1 with FRL, maximum resolution of 4K 120Hz

2x Type-C DisplayPort

Thunderbolt„ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K 120Hz 8K 60Hz

Slot

3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110 2280 2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 2260 2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 SATA mode, supports 2280 2260 2242 devices

4x SATA 6G

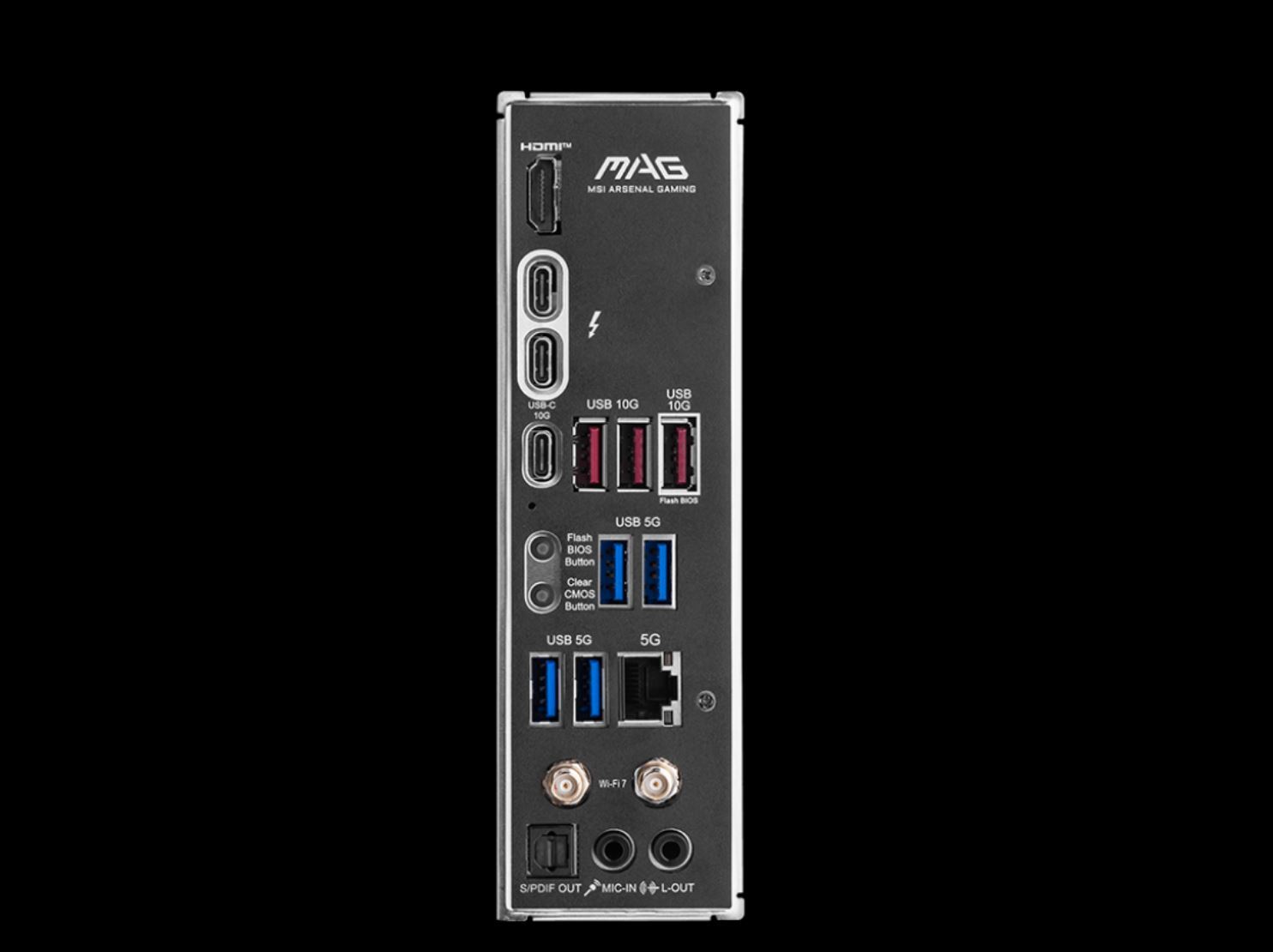

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

LAN Intel Killer„ E5000 5Gbps LAN
