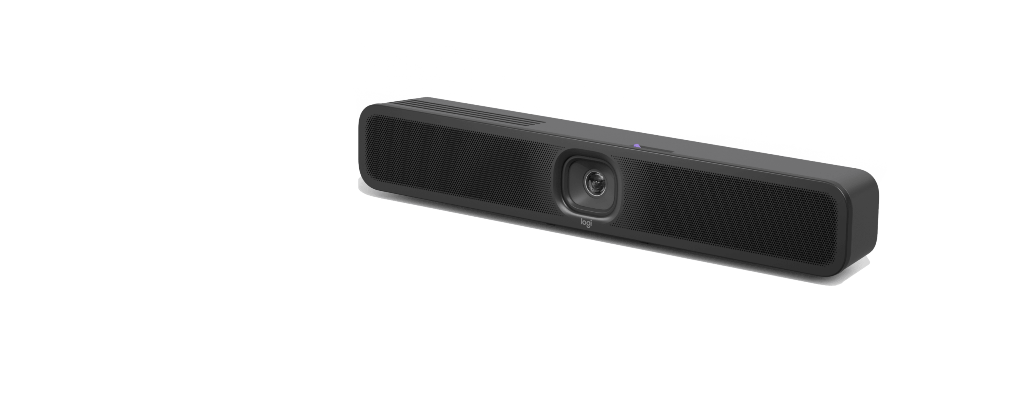

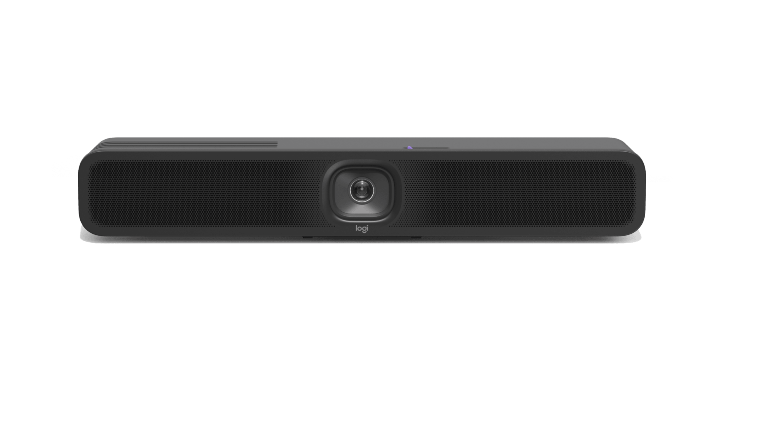

Logitech MeetUp 2 - All-In-One Conference camera

Upgrade your small meeting rooms with MeetUp 2, a USB conference camera for small spaces powered by AI features that simplify the meeting experience for both employees and IT.

Specs Details

Dimensions

Height: 73.3 mm

Width: 469.2 mm

Depth: 73 mm

Weight: 1.8 kg

Technical Specifications

Overview

Built-in Components

6 DMIC microphone array

Digital PTZ camera

1 full range ported speaker

Cable management retention system

Multi-mount

Logitech CollabOS platform

Logitech RightSight 2

Logitech RightSound 2

General Specifications

Enclosure: All-in-one enclosure

Device Management: Logitech Sync

Displays Supported: BYOD mode: 1 Dedicated computer mode: computer application dependent

Display Resolution: 1080p

Network Protocol Support: IPv4, IPv6

Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

Digital pan: ±48 degree at 4x zoom

Digital Tilt: ±32 degree at 4x zoom

Zoom: 4X HD digital zoom

Diagonal Field of View: 120 degree

Horizontal Field of View: 113 degree

Vertical Field of View: 80 degree

Resolution: 4K

Speakers

Driver: 55 mm with bass reflex enclosure and patented suspension design

Sensitivity: 83 dB SPL 1W -2dB 1 meter

Rated Power: 8W THD at 1W, 1kHz : 2pct

Speaker Sampling Rate: 48KHz

Impedance: 4 Ohms

Microphones

Frequency Response: 90Hz “ 16kHz

Sensitivity: -36dBFS -1 dB 1Pa

Microphone data rate output: 48 kHz

Pickup Range: Up to 7m

Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams

Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)

Noise suppression: AI based de-noising algorithm

Interfaces

HDMI Out: 1

HDMI In: 1

USB: 1 x Type C USB 3.1

Network: 10 100 1G Ethernet

WiFi: 802.11a b g n ac

Bluetooth: Bluetooth Low Energy

Power and Cables

Power supply: Auto-sensing

Operating Voltage Power: 100-240V, 19V, 2.1A

Power Supply Dimensions: 114 x 47 mm x 32.3 mm

DC Cable: 3 m

USB C to USB C 3.0 Cable: 3 m

Environmental

Operating Temperature: 0 to 40 degreeC

Storage Temperature: -25-70 degreeC

Humidity: 10 to 90pct

Security

File Based Encryption: AES-128

Data Encryption: Symmetric Keys, PKI

Device Identity: Protected by device attestation

Device Access: Authenticated using API

Key Protection: Arm TrustZone, RPMP

Physical Security: Kensington security slot

Warranty Information

2-Year Limited Hardware Warranty

1-Year and 3-Year Extended Warranty available for purchase

Windows 10 and higher

macOS: two most recent versions

Network Connection: wired or wireless
