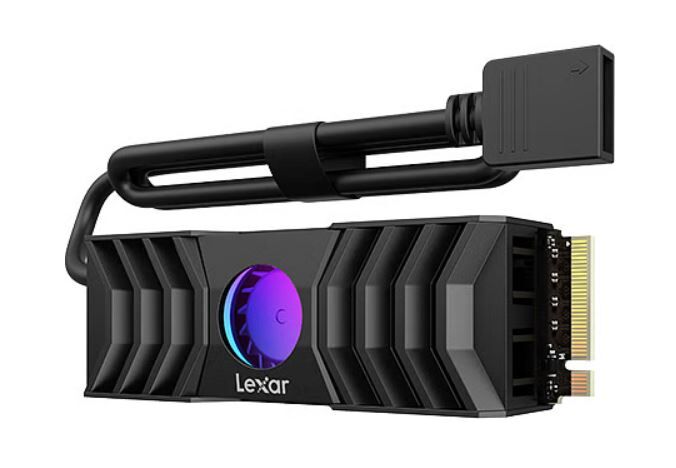

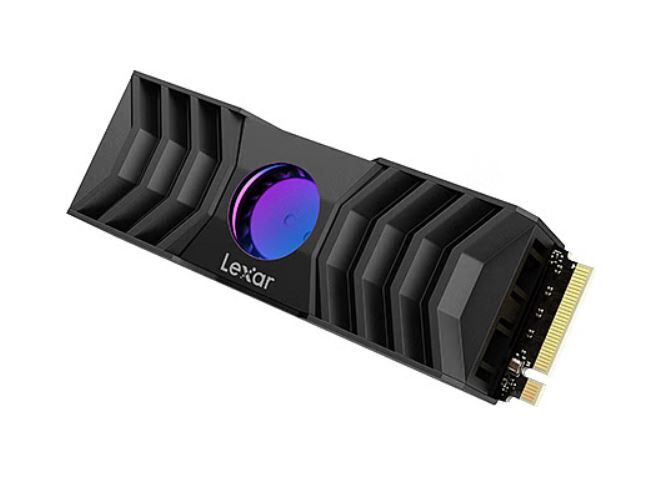

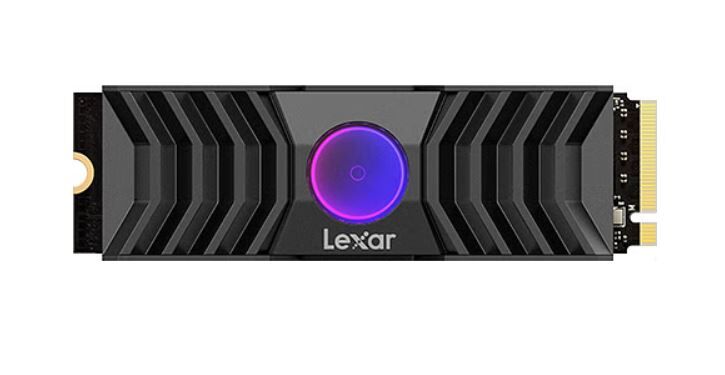

Lexar LNM1090002T-RNANG 2TB PCIe G5x4 M.2 2280 up to 12000MB s read, 11000MB s write, with RGB FAN Heatsink

Key Features

· High-speed Performance

· PCIe Gen 5x4 Interface

· Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs

· 2TB-sequential read up to 12,000MB s, write up to 11,000MB s Random read up to 1400K IOPs, random write up to 1400K IOPs

Full-throttle Performance, Maximized Cooling

With lightning-fast speeds up to 12000MB s read, 11000MB s write and an RGB heatsink with a heat-blasting fan, the Lexar Professional NM1090 PCIe 5.0 SSD is designed for superior performance. The drive features SLC dynamic cache which improves performance and reduces latency, plus it supports Microsoft DirectStorage and is compatible with Intel 13 and 14 and AMD Ryzen 7000 series CPUs.

Twice as Fast as PCIe 4.0

PCIe 5.0 speeds of up to 12000MB s read, 11000MB s write deliver cutting-edge performance.

Exceptionally Cool Design

A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Built to Perform

The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

CPU Compatibility

Compatible with Intel 13th and 14th gen and AMD Ryzen 7000 series CPUs.

Monitor Drive Health and Optimize Performance

Supports Lexar DiskMaster disk management tool.

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

Form Factor

M.2 2280

Interface

PCIe Gen5x4

Speed

1TB sequential read up to 11,500MB s, write up to 9,000MB s

Random read up to 1300K IOPs, random write up to 1400K IOPs

2TB sequential read up to 12,000MB s, write up to 11,000MB s

Random read up to 1400K IOPs, random write up to 1400K IOPs

4TB sequential read up to 12,000MB s, write up to 11,000MB s

Random read up to 1400K IOPs, random write up to 1400K IOPs

Operating Temperature

0 degreeC to 70 degreeC (32 degreeF to 158 degreeF)

Storage Temperature

-40 degreeC to 85 degreeC (-40 degreeF to 185 degreeF)

Shock Resistant

1500G, duration 0.5ms, Half Sine Wave

Vibration Resistant

10~2000Hz, 1.5mm, 20G, 1 Oct min, 30min axis (X, Y, Z)

TBW

1TB: 700TBW, 2TB: 1400TBW, 4TB: 3000TBW

MTBF

1,500,000 Hours

Dimensions (L x W x H)

80 x 24 x 17.35mm 3.15 ft x 0.94 ft x 0.68 ft

Weight

72.5g 0.16 lbs

Warranty

Five-year limited warranty
