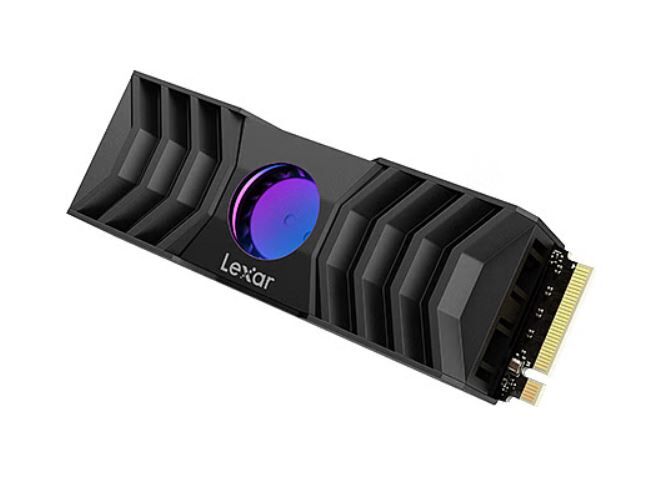

Lexar LNM1090001T-RNANG 1TB PCIe G5x4 M.2 2280 up to 11500MB s read, 9000MB s write, with RGB FAN Heatsink

PCIe 5.0 speeds of up to 12,000MB s read, 11,000MB s write1 deliver cutting-edge performance.

A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Features

Full-throttle Performance, Maximized Cooling

Twice as Fast as PCIe 4.0

Exceptionally Cool Design

Built to Perform

CPU Compatibility

Monitor Drive Health and Optimize Performance

Rigorously Tested

The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

Specifications

Form Factor

M.2 2280

Interface

PCIe Gen5x4

Speed

1TB sequential read up to 11,500MB s, write up to 9,000MB s

Random read up to 1300K IOPs, random write up to 1400K IOPs

2TB sequential read up to 12,000MB s, write up to 11,000MB s

Random read up to 1400K IOPs, random write up to 1400K IOPs

4TB sequential read up to 12,000MB s, write up to 11,000MB s

Random read up to 1400K IOPs, random write up to 1400K IOPs

Operating Temperature

0 degreeC to 70 degreeC (32 degreeF to 158 degreeF)

Storage Temperature

-40 degreeC to 85 degreeC (-40 degreeF to 185 degreeF)

Shock Resistant

1500G, duration 0.5ms, Half Sine Wave

Vibration Resistant

10~2000Hz, 1.5mm, 20G, 1 Oct min, 30min axis (X, Y, Z)

TBW

1TB: 700TBW, 2TB: 1400TBW, 4TB: 3000TBW

MTBF

1,500,000 Hours

Dimensions (L x W x H)

80 x 24 x 17.35mm 3.15 ft x 0.94 ft x 0.68 ft

Weight

72.5g 0.16 lbs

Warranty

Five-year limited warranty
