Description

Supports up to 6 displays

· Designed for digital signage - are ideal for the QSR market or display walls

· Supports up to 2 internal drives

· Built for harsh and extreme environments

· Supports Windows 10 & Linux

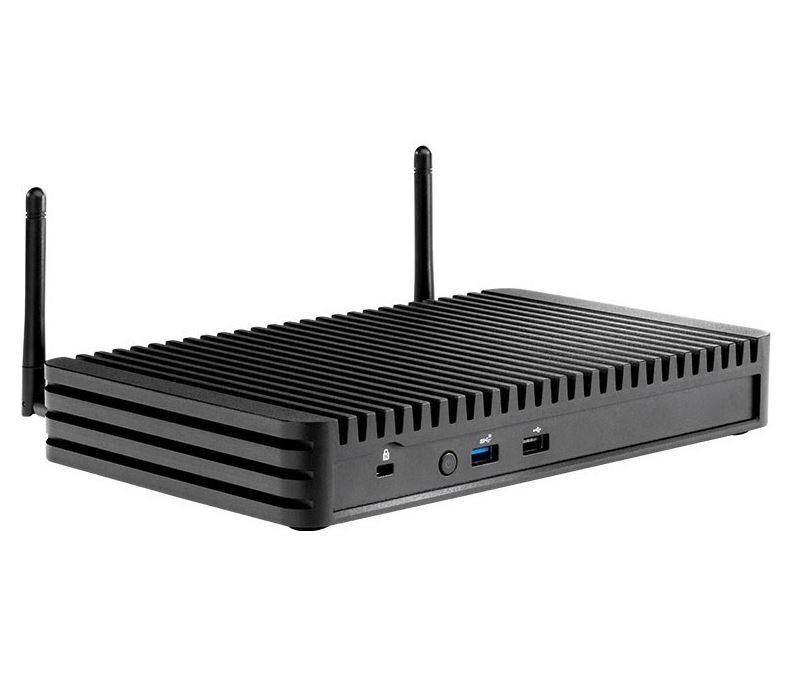

The multi-HDMI Intel NUC Rugged Chassis + Board Element designed for harsh and extreme environments The Six HDMI* ports - designed for digital signage - are ideal for the QSR market or display walls.


SPECIFICATIONS

Essentials

Product Collection

Intel NUC Chassis Elements


Code Name

Products formerly Austin Beach


Status

Launched


Launch Date

Q3'20


Supported Operating Systems

Windows 10, Linux


Board Form Factor

U-series Element Carrier Board


Internal Drive Form Factor

M.2 SSD


# of Internal Drives Supported

2


TDP

15 W


DC Input Voltage Supported

12V~24V


Warranty Period

3 Years


Description

The multi-HDMI Intel NUC Rugged Chassis + Board Element designed for harsh and extreme environments The Six HDMI* ports - designed for digital signage - are ideal for the QSR market or display walls.


Graphics

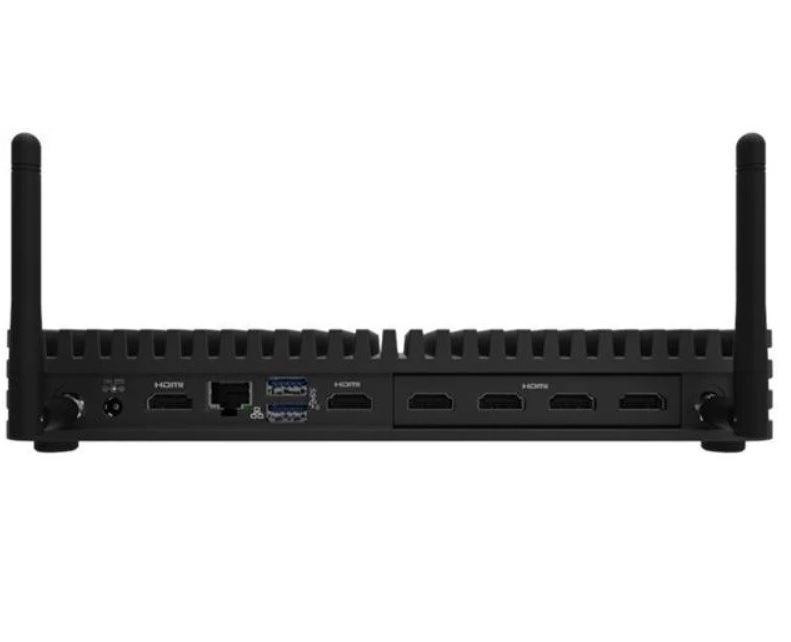

Graphics Output

Six HDMI


# of Displays Supported

6


Expansion Options

M.2 Card Slot (storage)

2280, 2242/80 (M-key)


I/O Specifications

USB Configuration

USB 3.2g2: 1x front, 2x rear ports

USB 3.1g1: 1x header

USB 2.0: 1x front port, 2x headers


# of Serial Ports

2


Serial Port via Internal Header

Yes


Integrated LAN

Intel i219-LM GbE


Additional Headers

Front panel (PWR_SW, PWR_LED, RST, HDD_Act, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector


Package Specifications

Chassis Dimensions

254 x 152.4 x 36 mm (plus 4.8mm for rubber feet)

Specifications
SKU SYI-BKCMCR1ABC
Barcode # 5032037179560
Brand Intel
Shipping weight 0.1000kg
Assembled length 0.250m
Assembled height 0.036m
Assembled width 0.152m

Intel NUC Rugged Chassis + Board Element Requires Compute Element 24x7 2xM.2 6xHDMI 4K@60Hz 3xUSB3.2 GBLAN supports Windows/Linux no Power Cord

$353.80
RRP $409.00 save 14%

or 4 payments of $88.45 with Learn more

In Stock

Product Information

SKU:

SYI-BKCMCR1ABC

Brand:

Intel

Barcode #:

5032037179560

Shipping Weigth:

0.1000kg
