Description

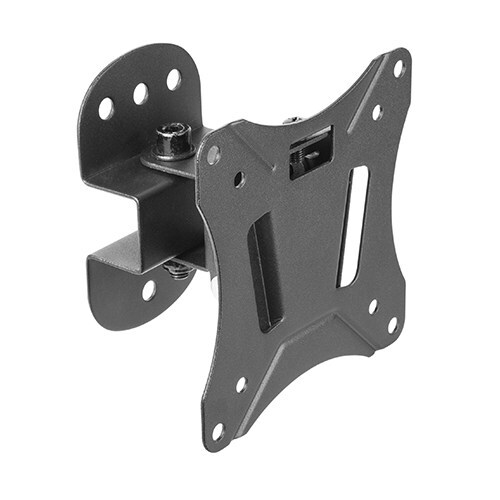

The new model KMA21-110 is an ideal solution for most 13'-27' flat panel TVs up to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you to adjust the TV angle to get the optimum viewing angle: whether it's avoiding glare or positioning it towards the sofa for the perfect view, from anywhere in the room. VESA compatible with 75x75, 100x100.


FEATURES

—�Easy-Grip Knobs: for quick tilt and lock

—�Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

—�Easy Assembly: Installation is as easy as 1-2-3


SPECIFICATIONS

Product Category: Pivot TV Wall Mount

Rank: Standard

Material: Steel

Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079' cold-rolled sheet,VESA Panel THK=0.059' cold-rolled sheet)

Surface Finish: Powder Coating

Color: Fine Texture Black

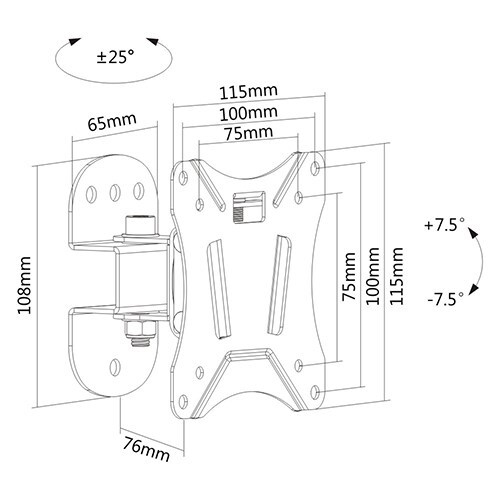

Dimensions: 115x115x76mm (4.5'x4.5'x3')

Fit Screen Size: 13'-27'

Fit Curved TV: No

Mounting Hole Pattern : VESA Only

VESA Compatible: 75x75,100x100

Max. VESA: 100x100

Weight Capacity: 25kg (55lbs)

Strength Tested: 2 Times Approved

Profile: 76mm (3')

Tilt Range: +7.5°ï½ž-7.5°

Swivel Range: +25°~-25°

Screen Freely Tilting: No

Installation: Solid Wall,Single Stud

Panel Type: Detachable Panel

Wall Plate Type: Fixed Wall Plate

Cable Management: No

Anti-theft: No

Bubble Level: No

Accessory Kit Package: Compartment Polybag

Specifications
SKU MABT-KMA21-110
Barcode # 6956745164535
Brand Brateck
Shipping weight 1.1600kg
Shipping width 0.230m
Shipping height 0.184m
Shipping length 0.236m
Assembled length 1.360m
Assembled height 0.840m
Assembled width 1.300m

Brateck LCD Economy Pivot TV Wall Mount Bracket VESA 75 x75mm 100 x100mm 13 inch-27 inch LCD Panel Up to 25kg

$13.34
RRP $38.50 save 65%

or 4 payments of $3.33 with Learn more

In Stock

Product Information

SKU:

MABT-KMA21-110

Brand:

Brateck

Barcode #:

6956745164535

Shipping Weigth:

1.1600kg
