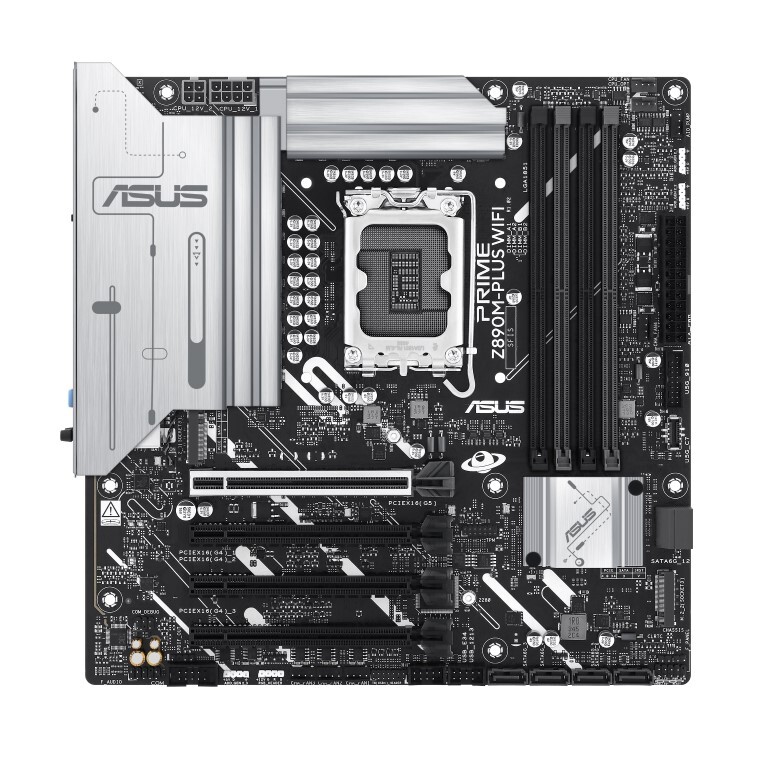

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core„ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

SPECIFICATIONS:

CPU

Supports Intel Core„ Ultra Processors(Series 2), LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Refer to https: www.asus.com support download-center for CPU support list.

Chipset

Intel Z890 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5

Support up to 8400MT s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Dual channel memory architecture

DIMM Fit

Supports Intel Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

1 x DisplayPort

1 x HDMI„ port

1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 4K 60Hz as specified in DisplayPort 1.4.

Supports 4K 60Hz as specified in HDMI 2.1.

Supports max. 4K 120Hz as specified in DisplayPort 1.4.

VGA resolution support depends on processors ft or graphic cards ft resolution.

Special Features

ASUS 5X PROTECTION III

- DIGI VRM (- Digital power design with DrMOS)

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I O

ASUS Q-Design

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack„ button

- BIOS FlashBack„ LED

- ProCool

- Pre-mounted I O shield

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers
