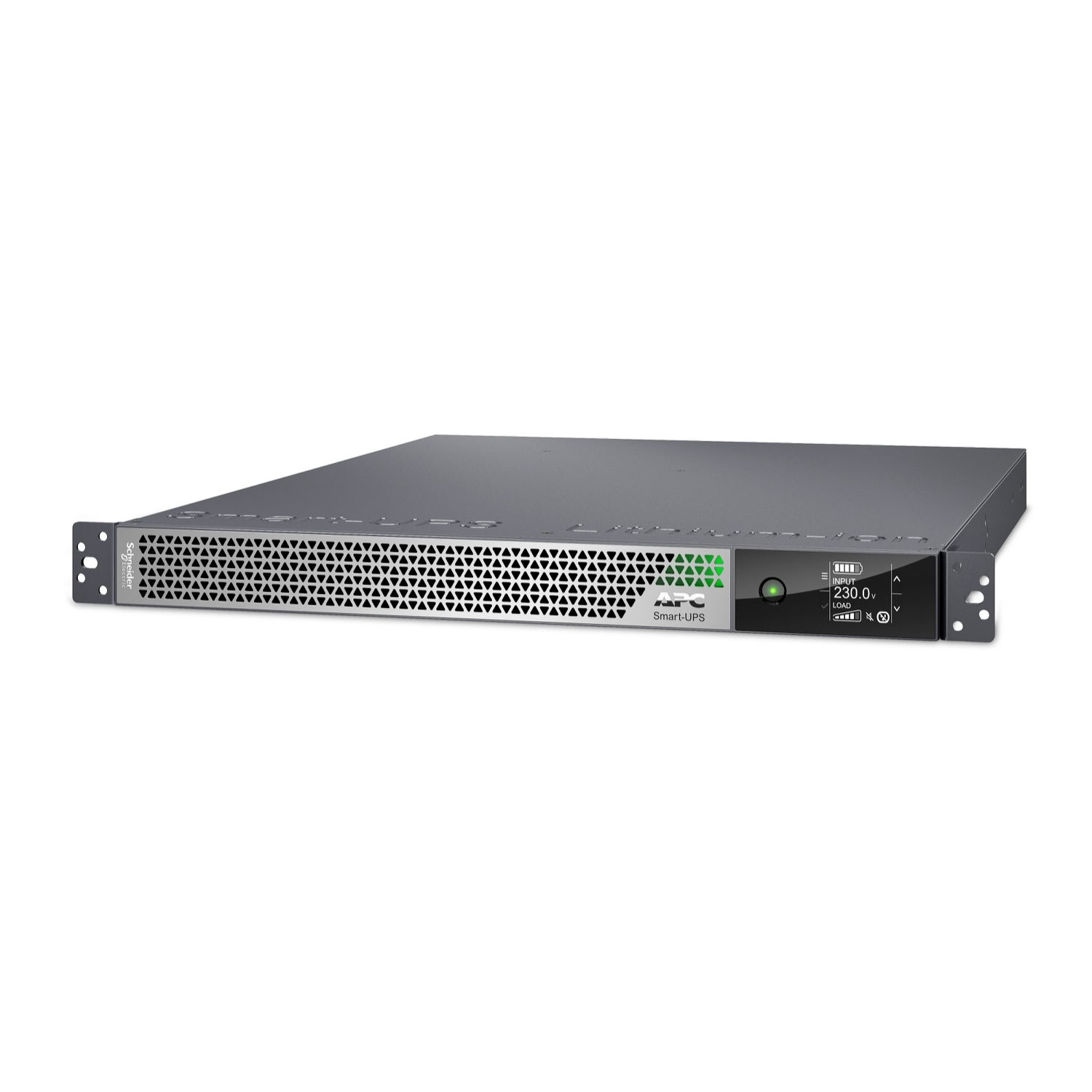

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Ideal for servers, storage, voice data networks, medical labs, and light industrial applications.

Run time for load 3000 W 4min 37s

Min-max: 300-3000 W

Max. Capacity Used 100 pct

Main Input Voltage 230 V

Other Input Voltage 230 V

Main Output Voltage 230 V

Other Output Voltage 230 V

Rated power in W 3000 W

Rated power in VA 3000 VA

Input Connection Type BS1363A British, IEC 60320 C20, Schuko CEE 7 EU1-16P

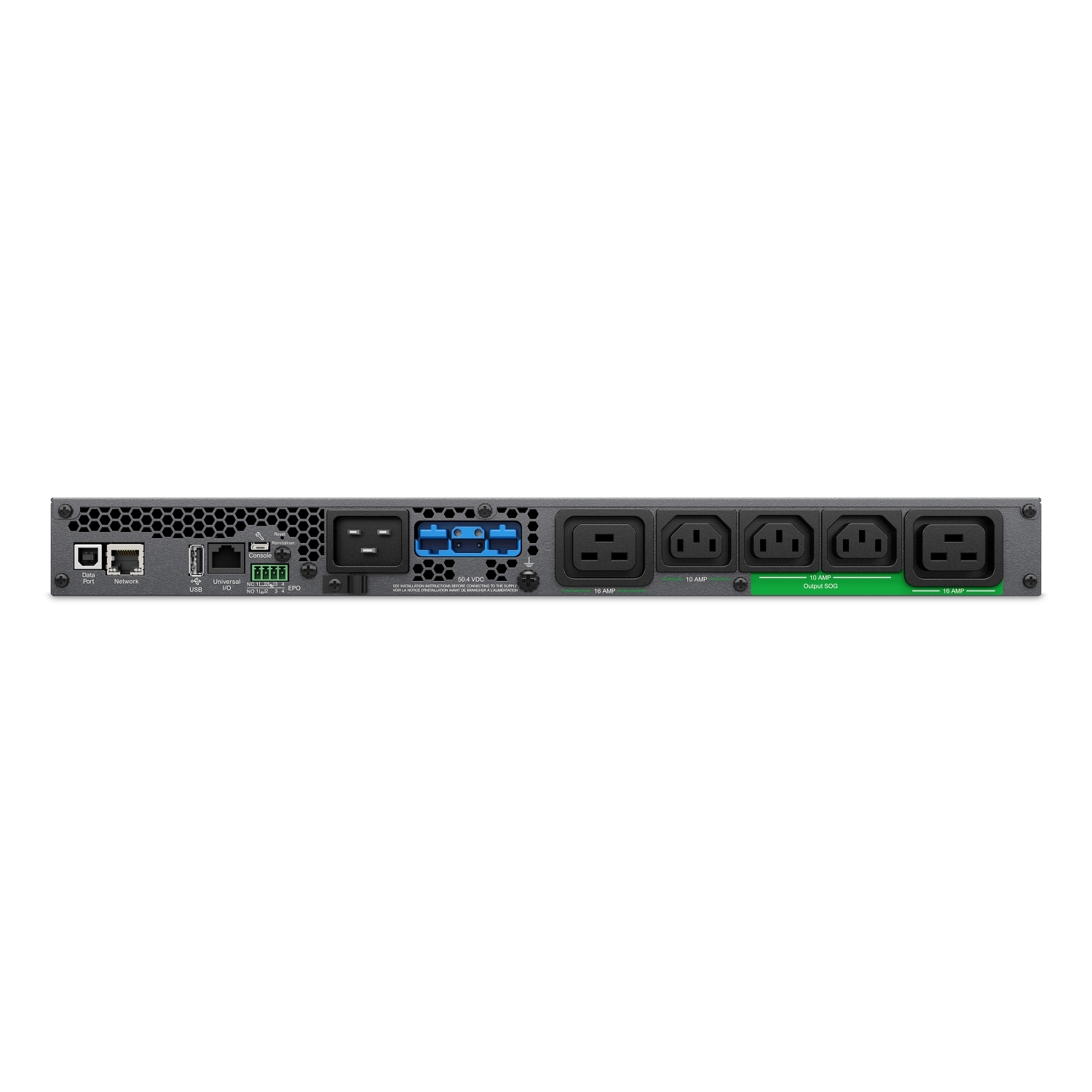

Output connection type 3 IEC 320 C13, 2 IEC 320 C19

Number of rack unit 1U

Cable length 2.44 m

Number of cables 1

Battery type Li-Ion (Lithium-Ion)

Provided equipment- RJ45 cable, USB cable, Safety guide, Rack mounting brackets, Stabilization feet, Screws

Ambient air temperature for operation 0¦40 degreeC

Relative humidity 0¦95 pct non-condensing

Operating altitude 0...10000 ft

Ambient air temperature for storage -15¦45 degreeC

Storage Relative Humidity 0¦95 pct non-condensing

Storage altitude 0.00¦15240.00 m

Acoustic level 55 dB

Heat dissipation 325 Btu h

IP degree of protection IP20

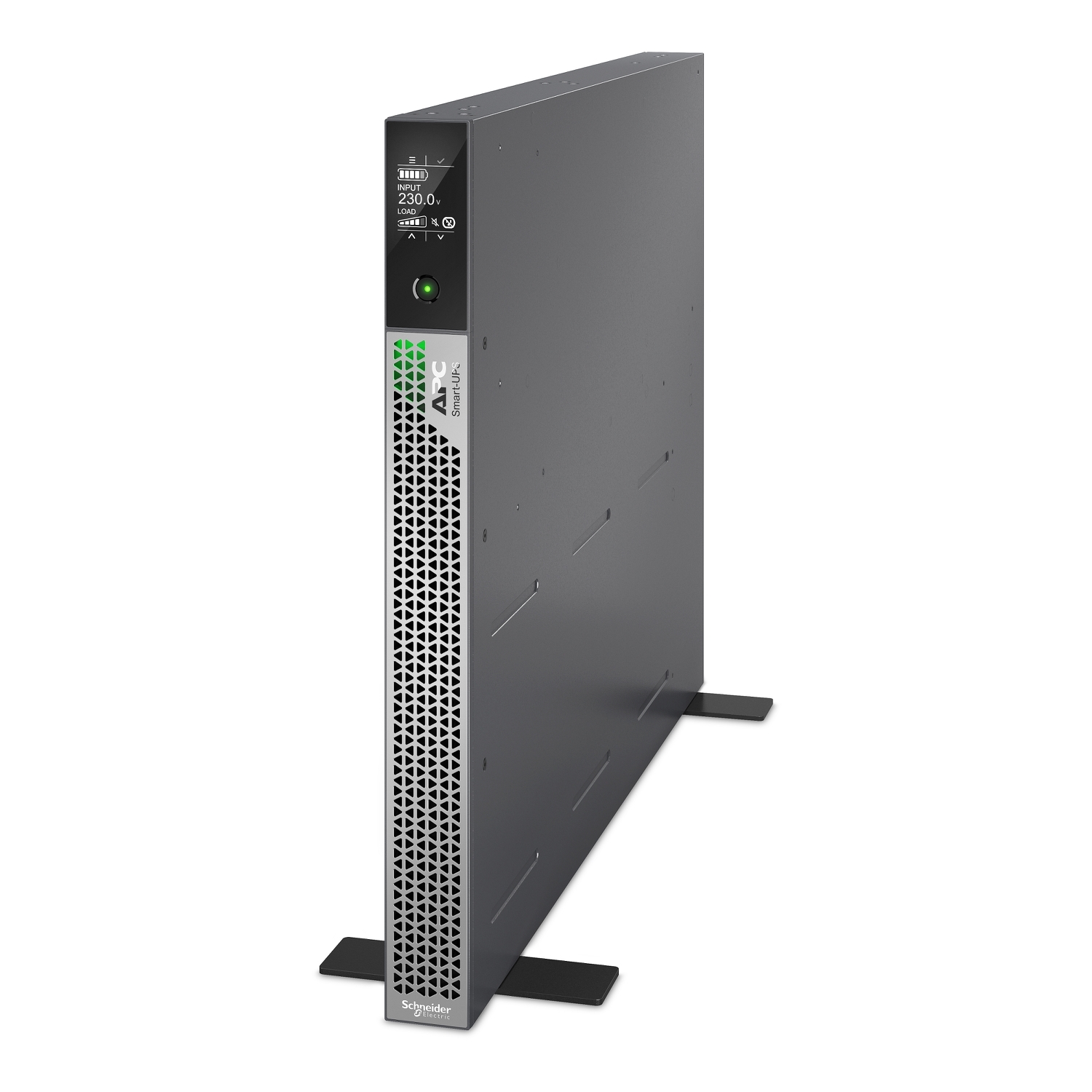

Mounting mode- Rack mounted with kit, Tower-mounted with kit

Replacement Battery -APCRBC173-LI

Compatible Service bypass panels-SBP3000RMHW, SBP3000RMI

Compatible Sensors- AP9335T, AP9335TH

Compatible NMC -AP9810
