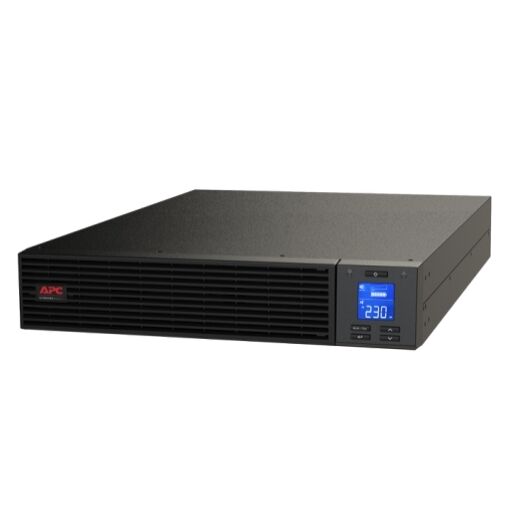

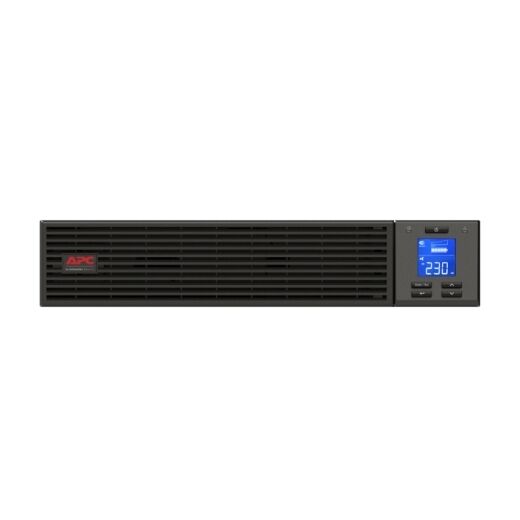

APC Easy UPS On-Line, 3kVA 2400W, Rackmount 2U, 230V, 6x IEC C13 1x IEC C19 outlets, Intelligent Card Slot, LCD, W rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Run time for load 2400 W 4min 24s

Min-max: 240-2400 W

Max. Capacity Used 100 pct

Main Input Voltage 230 V

Other Input Voltage 220 V 240 V

Main Output Voltage 230 V

Other Output Voltage 220 V 240 V

Rated power in W 2400 W

Rated power in VA 3000 VA

Input Connection Type IEC 60320 C20

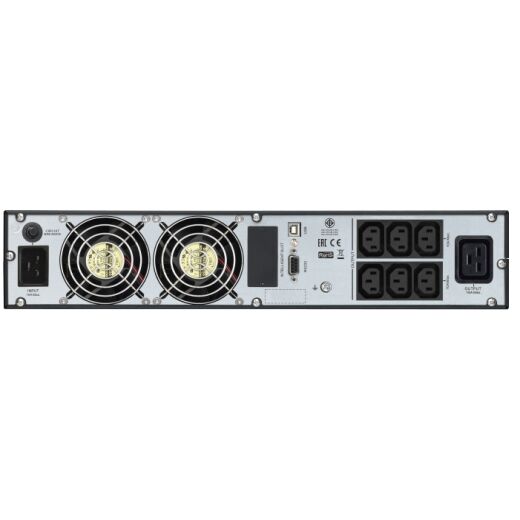

Output connection type 6 IEC 60320 C13, 1 IEC 60320 C19

Number of rack unit 2U

Cable length 1.48 m

Number of cables 1

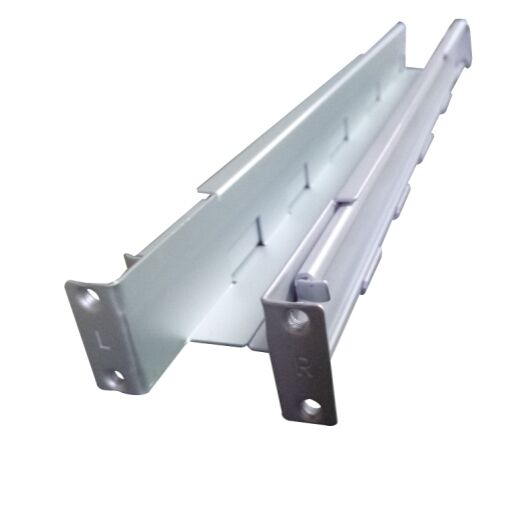

Provided equipment 1 IEC 60320 C19 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 1 rack mounting brackets, 1 rack mounting support rails user manual

Ambient air temperature for operation 0¦40 degreeC

Relative humidity 0¦95 pct non-condensing

Operating altitude 0...3000 m

Ambient air temperature for storage -20¦50 degreeC

Storage Relative Humidity 0¦95 pct non-condensing

Storage altitude 0¦15000 m

Acoustic level 50 dBA

Heat dissipation 910 Btu h

IP degree of protection IP20

Mounting mode- Rack mounted

Replacement Battery -APCRBCV202

Compatible NMC- AP9544, SRVSMB001, VGL9901I
