Description

Output

Output power capacity:300 Watts / 500 VA

Max Configurable Power (Watts):300 Watts / 500 VA

Nominal Output Voltage:230V

Output Frequency (sync to mains):47 - 63 Hz

Output Frequency (not synced):50/60 Hz +/-1 Hz

Topology:Standby

Waveform type:Stepped approximation to a sinewave

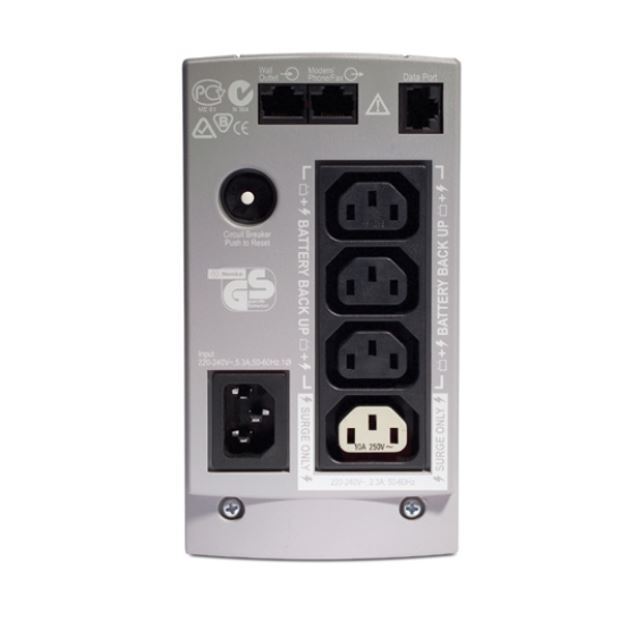

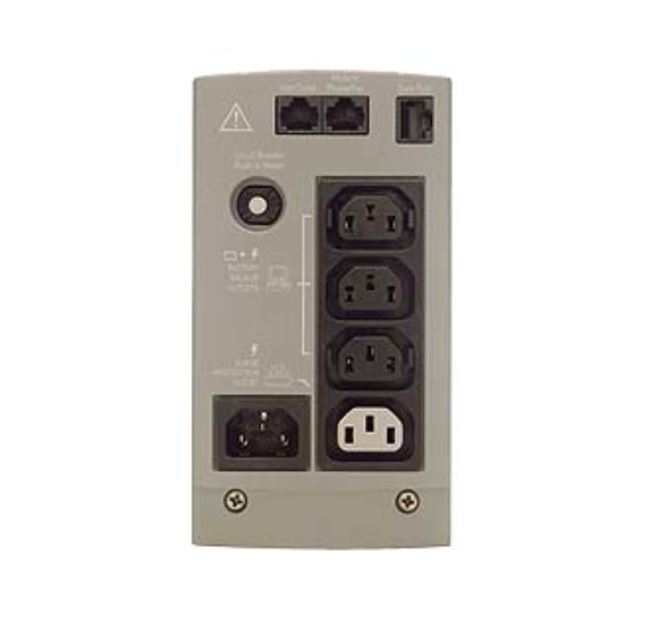

Output Connections:

—¦ (1) IEC 320 C13 (selector_surgetitle)

—¦ (3) IEC 320 C13 (Battery Backup)


Transfer Time:6ms typical: 10ms maximum


Input

Nominal Input Voltage:230V

Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320-C14 inlet Cord Length 1.83 meters

Input voltage range for main operations:180 - 266 V

Input voltage adjustable range for mains operation:160 - 300 V

Number of Power Cords: 2

Maximum Input Current:7.0 A


Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time:8 hour(s)

Replacement Battery: RBC2

RBC Quantity:1

Battery Volt-Amp-Hour Capacity:83

Runtime: View Runtime Graph View Runtime Chart

Efficiency: View Efficiency Graph


Communications & Management

Interface Port(s): Optional Simple Signalling RS232 cable, USB

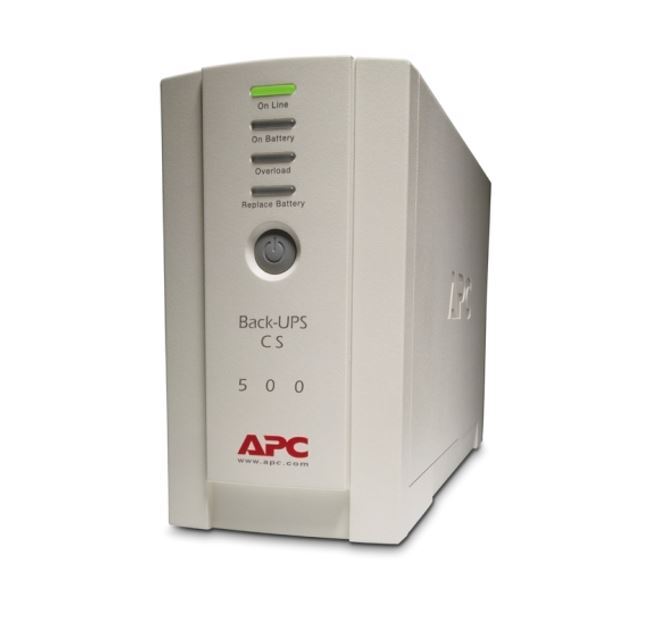

Control panel:LED status display with On Line: On Battery: Replace Battery and Overload indicators

Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm


Surge Protection and Filtering

Surge energy rating:310 Joules

Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)

Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449

Specifications
SKU UPAPCBK500EI
Barcode # 731304016359
Brand APC
Shipping weight 7.0200kg
Shipping width 0.292m
Shipping height 0.340m
Shipping length 0.524m
Assembled length 4.240m
Assembled height 2.400m
Assembled width 1.920m

APC Back-UPS 500VA 300W Standby UPS Tower 230V 10A Input 4x IEC C13 Outlets Lead Acid Battery User Replaceable Battery

$179.80
RRP $240.00 save 25%

or 4 payments of $44.95 with Learn more

In Stock

Product Information

SKU:

UPAPCBK500EI

Brand:

APC

Barcode #:

731304016359

Shipping Weigth:

7.0200kg

Warranty:

24
