Output
Output power capacity: 400 Watts / 650 VA
Max Configurable Power (Watts): 400 Watts / 650 VA
Nominal Output Voltage: 230V
Topology: Standby

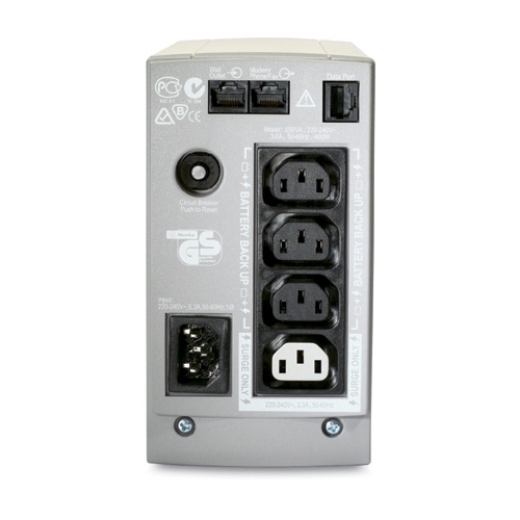

Output Connections —¦ (3) IEC 320 C13 (Battery Backup)
—¦ (1) IEC 320 C13 (selector_surgetitle)
Input
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Cord Length: 1.83 meters
Input voltage range for main operations: 180 - 260 V
Input voltage adjustable range for mains operation: 160 - 282 V
Number of Power Cords: 2
Batteries & Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time: 8 hour(s)
Replacement Battery: RBC17
RBC Quantity: 1
Battery Volt-Amp-Hour Capacity: 95
Runtime: View Runtime Graph
Efficiency: View Efficiency Graph
Communications & Management
Interface Port(s): USB
Control panel: LED status display with On Line: On Battery: Replace Battery and Overload indicators
Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating: 320 Joules
Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height: 165, 16.5 cm
Maximum Width: 91, 9.1 cm
Maximum Depth: 284, 28.4 cm
Net Weight: 6.04 kg
Shipping weight: 7.32 kg
Shipping Height: 494, 49.4 cm
Shipping Width: 185, 18.5 cm
Shipping Depth: 415, 41.5 cm
Color: Beige
Master Carton Units: 1.0
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-9000 meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-4500 meters
Audible noise at 1 meter from surface of unit: 45.0 dBA
Conformance
Approvals: A-tick, C-tick, CE, GOST, NEMKO
Equipment protection policy: Lifetime: $10
SKU | UPAPCBK650AS |
Barcode # | 731304224433 |
Brand | APC |
Shipping weight | 7.9200kg |
Shipping width | 0.285m |
Shipping height | 0.594m |
Shipping length | 0.515m |
Assembled length | 4.150m |
Assembled height | 4.940m |
Assembled width | 1.850m |

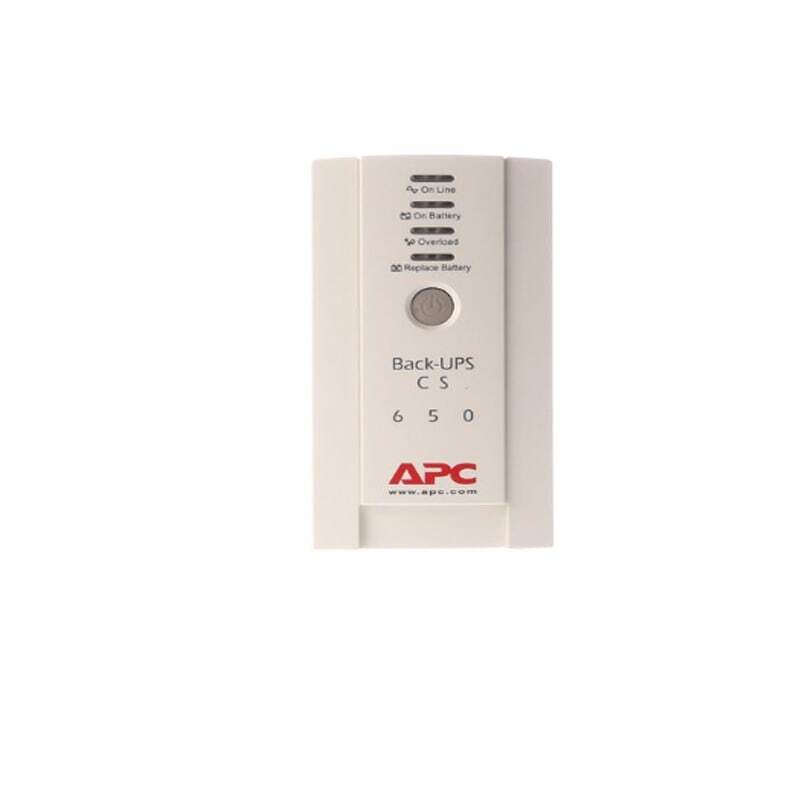

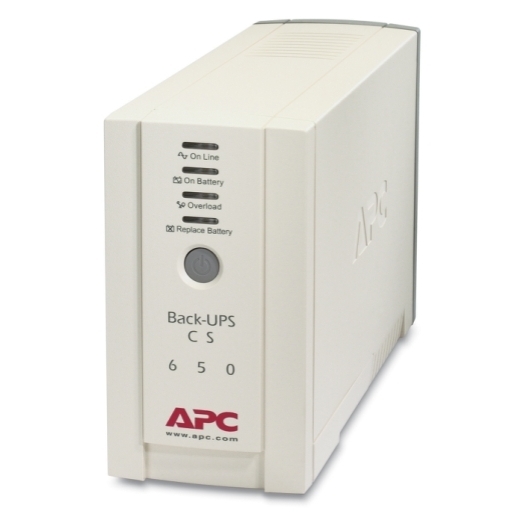

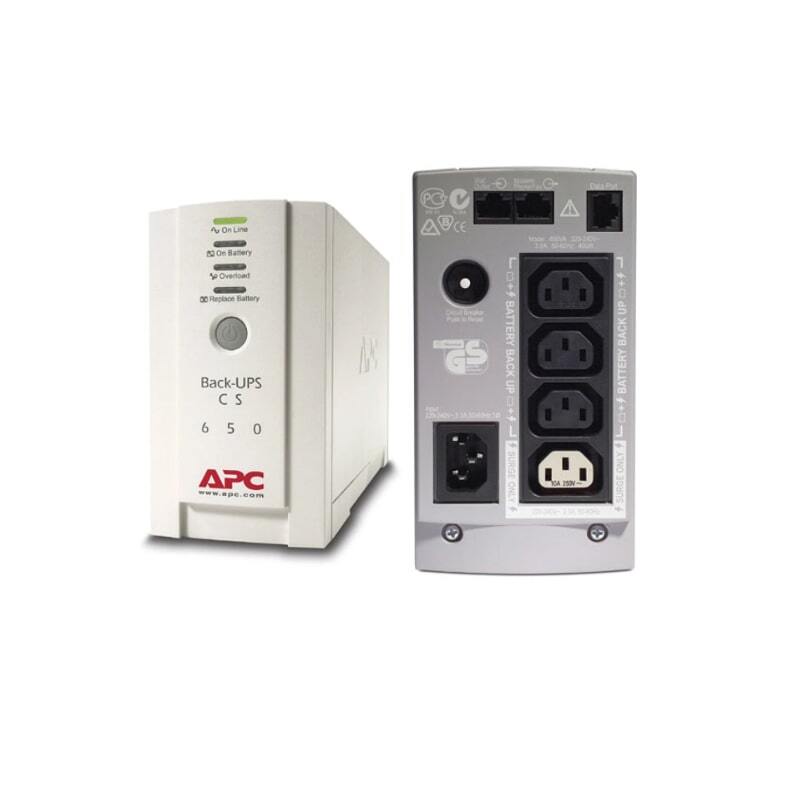

APC Back-UPS 650VA 400W Standby UPS Tower 230V 10A Input 4x IEC C13 Outlets Lead Acid Battery User Replaceable Battery
or 4 payments of $62.93 with Learn more
Product Information
SKU:
UPAPCBK650AS
Brand:
APC
Barcode #:
731304224433
Shipping Weigth:
7.9200kg
Warranty:
24
